lf4511010

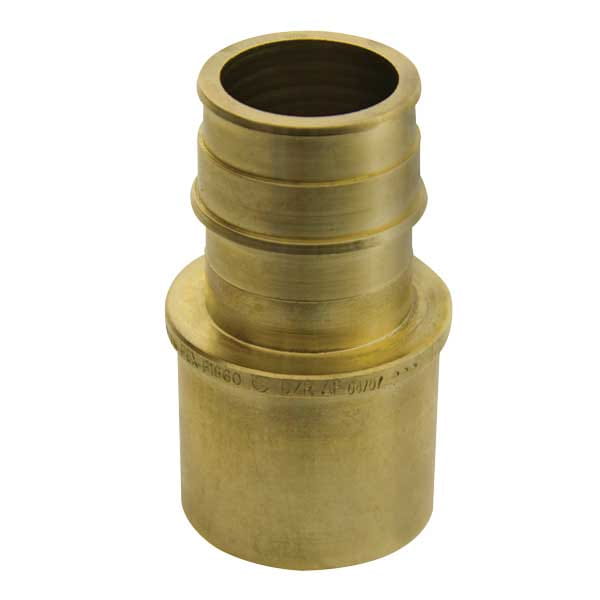

ProPEX LF Brass Sweat Adapter, 1" PEX x 1" Copper

Part no.LF4511010
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 17/64 inch
A [inch]2.268 inch
B [frac]11/64 inch
B [inch]0.177 inch
C [frac]29/32 inch
C [inch]0.91 inch
D [frac]1 1/8 inch
D [inch]1.13 inch
E [frac]1 23/64 inch
E [inch]1.36 inch
Equivalent length through [ft]2.4 ft
Weight per UOM [lbs/UOM]0.21 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-fs-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|UL 1821|NSF-61|NSF-14

Technical Data

Cv22.1
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 brass
