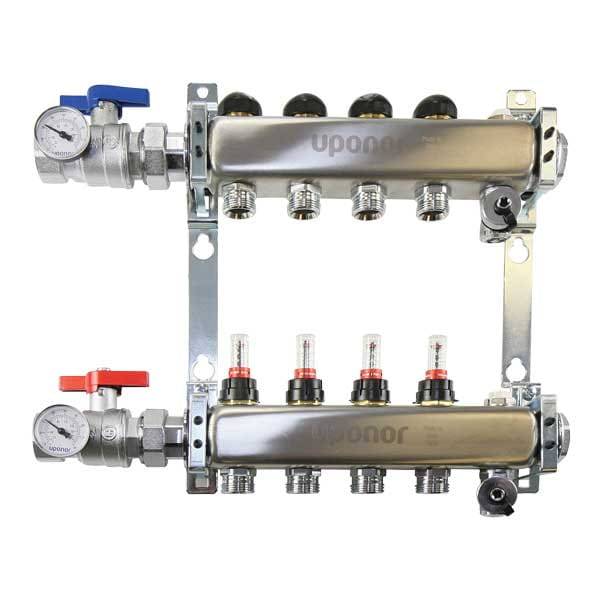

Stainless-steel Manifold Assembly, 1 1/4" with flow meter, B&I, ball valve, 7 loops

Part no.A2720702
StatusActive

Part information and details

Dimensions

A [frac]20 25/32 inch
A [inch]20.776 inch
B [frac]13 9/64 inch
B [inch]13.134 inch
C [frac]8 27/32 inch
C [inch]8.85 inch
D [frac]1 31/32 inch
D [inch]1.969 inch
E [frac]3 29/64 inch
E [inch]3.45 inch
F [frac]1 3/4 inch
F [inch]1.75 inch
G [frac]1/2 inch
G [inch]0.5 inch
H [frac]14 29/64 inch
H [inch]14.46 inch
I [frac]1 31/32 inch
I [inch]1.969 inch
J [frac]1 37/64 inch
J [inch]1.572 inch
K [frac]1 61/64 inch
K [inch]1.95 inch
L [frac]1 1/32 inch
L [inch]1.03 inch
M [frac]1 1/2 inch
M [inch]1.5 inch
N [frac]2 7/32 inch
N [inch]2.22 inch
Manifold Body Size (I.D.) [inch]1.25 inch
Weight per UOM [lbs/UOM]13.72 lbs/uom

Technical Data

Cv Branch1.1
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Flow Rate Max. [gpm]21 gpm
Operating Pressure 1 [PSI]145 psi
Operating Pressure 2 [PSI]87 psi
Operating Pressure 3 [PSI]44 psi
Operating Temperature 1 [°F]68 °f
Operating Temperature 2 [°F]158 °f
Operating Temperature 3 [°F]194 °f
Material manifoldStainless steel AISI304
Material groupStainless Steel
Prop 65 label required?Yes
Submittal Subcomponent MaterialManifold Components: Brass CW614N-UNI EN12164, CW617N-UNI EN12165
