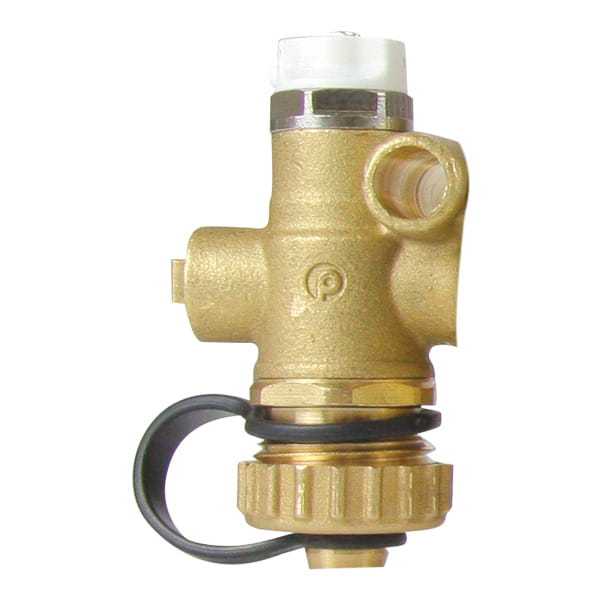

TruFLOW End Cap with Vent and Drain
Part no.A2621250
StatusActive
Part information and details
Dimensions
| A [frac] | 3 5/32 inch |
|---|
| A [inch] | 3.156 inch |
|---|
| B [frac] | 3 1/8 inch |
|---|
| B [inch] | 3.122 inch |
|---|
| C [frac] | 1 31/32 inch |
|---|
| C [inch] | 1.969 inch |
|---|
| Manifold Body Size (I.D.) [inch] | 1.25 inch |
|---|
| Weight per UOM [lbs/UOM] | 0.61 lbs/uom |
|---|
Technical Data
| End Size 1 [inch|mm] | 1-1/4" inch|mm |
|---|
| End Type 1 | ISO 228-G |
|---|
| Flow Rate Max. [gpm] | 21 gpm |
|---|
| Operating Pressure 1 [PSI] | 160 psi |
|---|
| Operating Pressure 2 [PSI] | 100 psi |
|---|
| Operating Pressure 3 [PSI] | 80 psi |
|---|
| Operating Temperature 1 [°F] | 73 °f |
|---|
| Operating Temperature 2 [°F] | 180 °f |
|---|
| Operating Temperature 3 [°F] | 200 °f |
|---|
| Material group | Brass |
|---|
| Prop 65 label required? | Yes |
|---|
Dimensions
| A [mm / String] | 80.16 mm/string |
|---|
| B [mm / String] | 79.31 mm/string |
|---|
| C [mm / String] | 50 mm/string |
|---|
| Weight per UOM [kg/UOM] | 0.277 kg/uom |
|---|
Technical Data
| End Type 1 | ISO 228-G |
|---|
| Flow Rate Max. [m³/h] | 4.77 m³/h |
|---|
| Operating Pressure 1 [bar] | 11 bar |
|---|
| Operating Pressure 2 [bar] | 6.9 bar |
|---|
| Operating Pressure 3 [bar] | 5.5 bar |
|---|
| Operating Temperature 1 [°C] | 23 °C |
|---|
| Operating Temperature 2 [°C] | 82 °C |
|---|
| Operating Temperature 3 [°C] | 93 °C |
|---|
| Material group | Brass |
|---|
| Prop 65 label required? | Yes |
|---|
