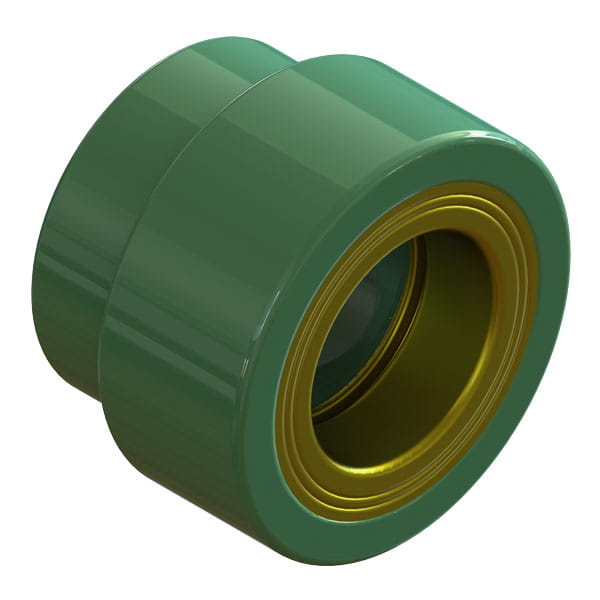

Uponor Brass Female Threaded Adapter, 1 1/4" PP-RCT x 1 1/4" NPT

Part no.PR5571313

StatusActive

Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [frac]	13/16 inch
A [inch]	0.807 inch
B [frac]	1 15/64 inch
B [inch]	1.24 inch
C [frac]	45/64 inch
C [inch]	0.7 inch
D [frac]	2 27/32 inch
D [inch]	2.839 inch
E [frac]	2 3/64 inch
E [inch]	2.047 inch
F [frac]	1 5/64 inch
F [inch]	1.073 inch
G [frac]	35/64 inch
G [inch]	0.54 inch
Equivalent length through [ft]	2.2 ft
Weight per UOM [lbs/UOM]	0.65 lbs/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Size 1 [inch\|mm]	1-1/4"
End Size 2 [inch\|mm]	1-1/4"
End Type 1	Socket
End Type 2	FNPT
Operating Pressure 1 [PSI]	340 psi
Operating Pressure 2 [PSI]	190 psi
Operating Pressure 3 [PSI]	100 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	140 °F
Operating Temperature 3 [°F]	180 °F
Prop 65 label required?	Yes

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [mm / String]	20.50 mm/string
B [mm / String]	31.50 mm/string
C [mm / String]	17.78 mm/string
D [mm / String]	72.10 mm/string
E [mm / String]	52 mm/string
F [mm / String]	27.25 mm/string
G [mm / String]	13.72 mm/string
Equivalent length through [m]	0.671 m
Weight per UOM [kg/UOM]	0.295 kg/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Type 1	Socket
End Type 2	FNPT
Operating Pressure 1 [bar]	23.44 bar
Operating Pressure 2 [bar]	13.1 bar
Operating Pressure 3 [bar]	6.9 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	60 °C
Operating Temperature 3 [°C]	82 °C
Prop 65 label required?	Yes
