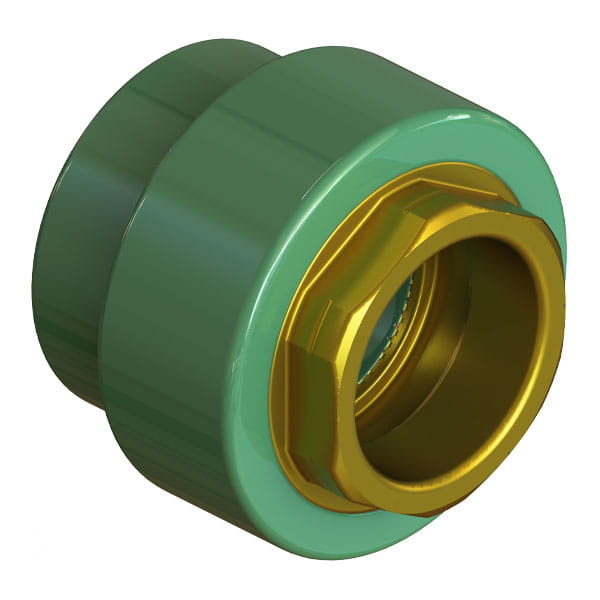

Uponor LF Brass Female Threaded Adapter, 1" PP-RCT x 1" NPT

Part no.PR4571010
StatusActive

Part information and details

Codes

CodesCMC|IPC|UMC

Dimensions

A [frac]23/32 inch
A [inch]0.713 inch
B [frac]1 3/64 inch
B [inch]1.039 inch
C [frac]11/16 inch
C [inch]0.69 inch
D [frac]2 5/16 inch
D [inch]2.307 inch
E [frac]1 3/4 inch
E [inch]1.752 inch
F [frac]55/64 inch
F [inch]0.856 inch
G [frac]11/32 inch
G [inch]0.349 inch
Equivalent length through [ft]1.7 ft
Weight per UOM [lbs/UOM]0.32 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Type 1Socket
End Type 2FNPT
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
