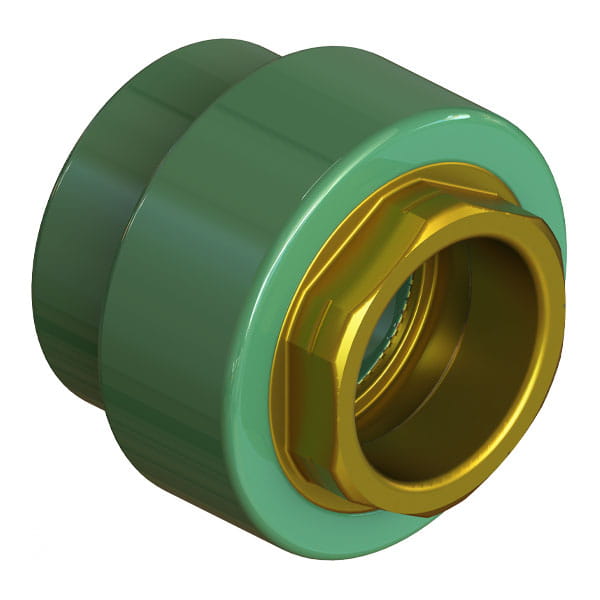

Uponor LF Brass Female Threaded Adapter, 3/4" PP-RCT x 1/2" NPT

Part no.PR4577550
StatusActive

Part information and details

Codes

CodesCMC|IPC|UMC

Dimensions

A [frac]5/8 inch
A [inch]0.63 inch
B [frac]53/64 inch
B [inch]0.827 inch
C [frac]35/64 inch
C [inch]0.54 inch
D [frac]1 3/8 inch
D [inch]1.374 inch
E [frac]1 29/64 inch
E [inch]1.457 inch
F [frac]43/64 inch
F [inch]0.677 inch
G [frac]9/32 inch
G [inch]0.287 inch
Equivalent length through [ft]1.1 ft
Weight per UOM [lbs/UOM]0.14 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]1/2"
End Type 1Socket
End Type 2FNPT
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
