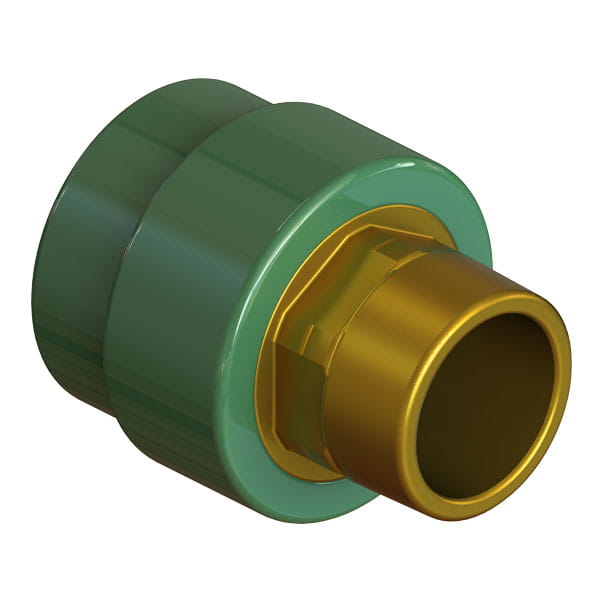

Uponor LF Brass Male Threaded Adapter, 1 1/4" PP-RCT x 1 1/4" NPT

Part no.PR4521313
StatusActive

Part information and details

Codes

CodesCMC|IPC|UMC

Dimensions

A [frac]2 53/64 inch
A [inch]2.835 inch
B [frac]13/16 inch
B [inch]0.807 inch
C [frac]1 7/32 inch
C [inch]1.22 inch
D [frac]45/64 inch
D [inch]0.71 inch
E [frac]2 3/4 inch
E [inch]2.756 inch
F [frac]2 9/64 inch
F [inch]2.146 inch
G [frac]1 43/64 inch
G [inch]1.676 inch
H [frac]1 3/8 inch
H [inch]1.378 inch
I [frac]1 5/64 inch
I [inch]1.073 inch
Equivalent length through [ft]3.1 ft
Weight per UOM [lbs/UOM]0.64 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Type 1Socket
End Type 2MNPT
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
