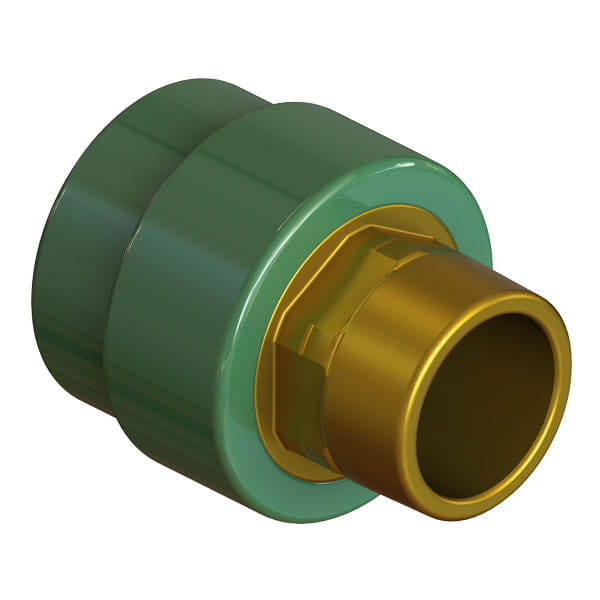

Uponor LF Brass Male Threaded Adapter, 3/4" PP-RCT x 1/2" NPT
Part no.PR4527550
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | CMC|IPC|UMC |
|---|
Dimensions
| A [frac] | 2 1/16 inch |
|---|---|
| A [inch] | 2.059 inch |
| B [frac] | 5/8 inch |
| B [inch] | 0.63 inch |
| C [frac] | 13/16 inch |
| C [inch] | 0.819 inch |
| D [frac] | 35/64 inch |
| D [inch] | 0.54 inch |
| E [frac] | 1 3/8 inch |
| E [inch] | 1.37 inch |
| F [frac] | 1 11/32 inch |
| F [inch] | 1.346 inch |
| G [frac] | 53/64 inch |
| G [inch] | 0.829 inch |
| H [frac] | 11/16 inch |
| H [inch] | 0.685 inch |
| I [frac] | 43/64 inch |
| I [inch] | 0.673 inch |
| Equivalent length through [ft] | 1.5 ft |
| Weight per UOM [lbs/UOM] | 0.15 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | NSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 3/4" |
|---|---|
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | Socket |
| End Type 2 | MNPT |
| Operating Pressure 1 [PSI] | 340 psi |
| Operating Pressure 2 [PSI] | 190 psi |
| Operating Pressure 3 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
| Prop 65 label required? | Yes |
