PR4764520

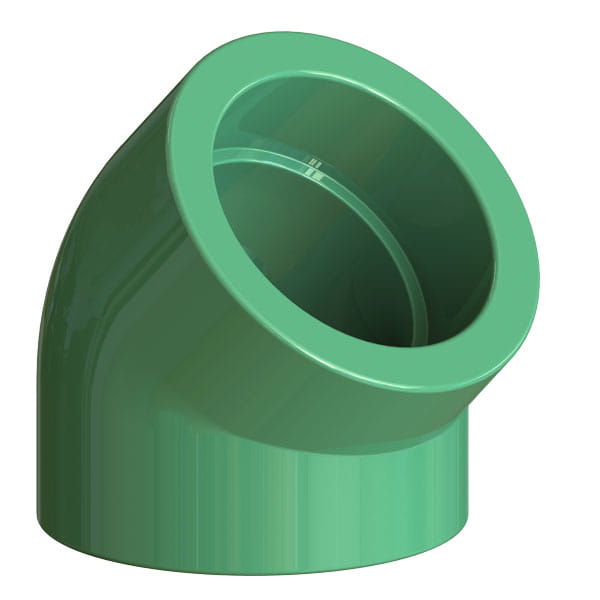

Uponor PP-RCT 45 Elbow, 2" x 2

Part no.PR4764520
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 5/64 inch
A [inch]1.079 inch
B [frac]9/16 inch
B [inch]0.566 inch
C [frac]3 15/16 inch
C [inch]3.937 inch
D [frac]3 59/64 inch
D [inch]3.924 inch
E [frac]3 17/64 inch
E [inch]3.264 inch
F [frac]1 5/8 inch
F [inch]1.632 inch
Equivalent length through [ft]2.8 ft
Weight per UOM [lbs/UOM]0.45 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
