PR4434550

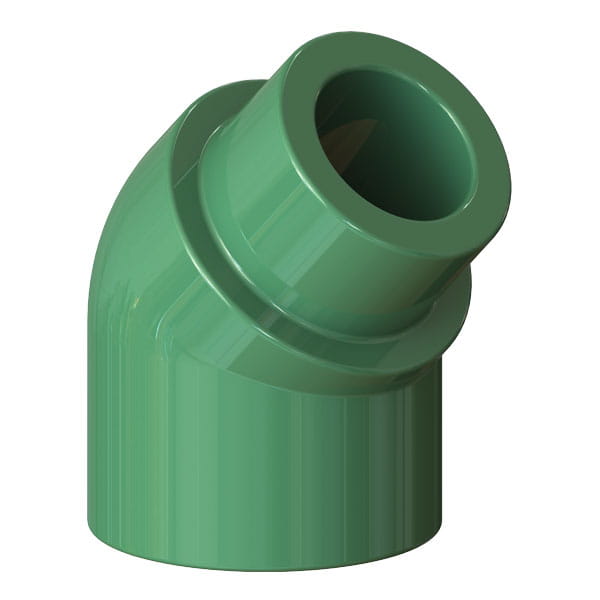

Uponor PP-RCT 45 Street Elbow, 1/2" x 1/2

Part no.PR4434550
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]37/64 inch
A [inch]0.571 inch
B [frac]9/64 inch
B [inch]0.147 inch
C [frac]21/64 inch
C [inch]0.322 inch
D [frac]7/16 inch
D [inch]0.433 inch
E [frac]1 33/64 inch
E [inch]1.522 inch
F [frac]1 5/16 inch
F [inch]1.316 inch
G [frac]1 1/32 inch
G [inch]1.024 inch
H [frac]33/64 inch
H [inch]0.512 inch
Equivalent length through [ft]0.9 ft
Weight per UOM [lbs/UOM]0.02 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1/2"
End Size 2 [inch|mm]1/2"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
