PR1147690600

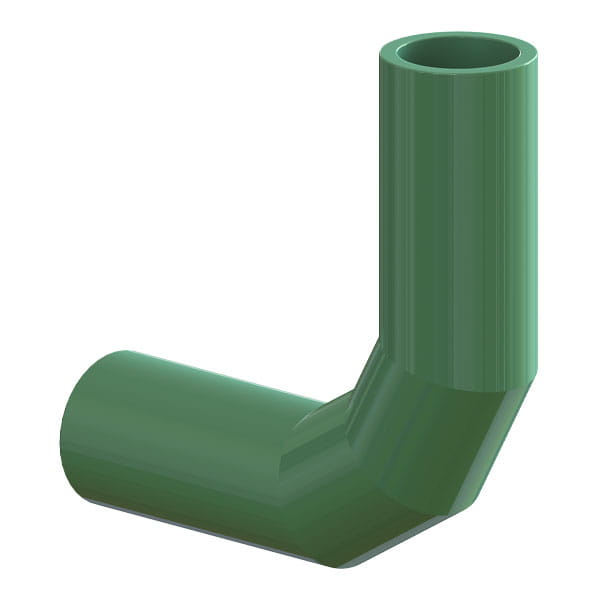

Uponor PP-RCT 90 Elbow, Mechanical, 6" x 6", SDR 11

Part no.PR1147690600
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]6 19/64 inch
A [inch]6.3 inch
B [frac]19 15/64 inch
B [inch]19.24 inch
C [frac]19 15/64 inch
C [inch]19.24 inch
D [frac]22 25/64 inch
D [inch]22.39 inch
E [frac]22 25/64 inch
E [inch]22.39 inch
F [frac]37/64 inch
F [inch]0.58 inch

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]6"
End Size 2 [inch|mm]6"
End Type 1Butt
End Type 2Butt
