PR4721500

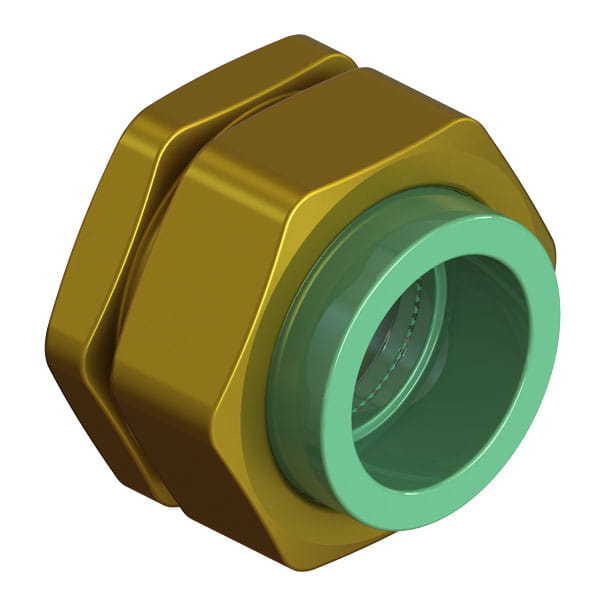

Uponor PP-RCT Brass Union, 1 1/2

Part no.PR4721500
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]59/64 inch
A [inch]0.925 inch
B [frac]25/64 inch
B [inch]0.394 inch
C [frac]2 1/2 inch
C [inch]2.5 inch
D [frac]3 11/32 inch
D [inch]3.346 inch
E [frac]3 47/64 inch
E [inch]3.742 inch
F [frac]1 19/64 inch
F [inch]1.297 inch
Weight per UOM [lbs/UOM]2.01 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/2"
End Size 2 [inch|mm]1-1/2"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
