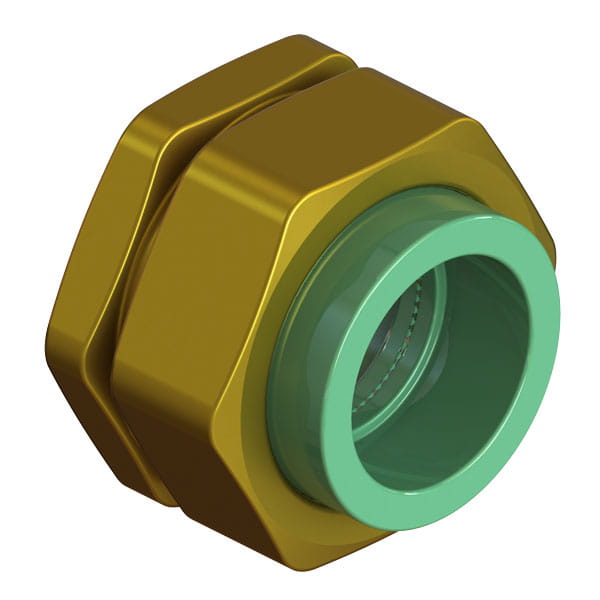

Uponor PP-RCT Brass Union, 2
Part no.PR4722000
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 1 7/64 inch |
|---|---|
| A [inch] | 1.102 inch |
| B [frac] | 13/32 inch |
| B [inch] | 0.402 inch |
| C [frac] | 2 13/16 inch |
| C [inch] | 2.811 inch |
| D [frac] | 4 9/64 inch |
| D [inch] | 4.134 inch |
| E [frac] | 4 21/32 inch |
| E [inch] | 4.65 inch |
| F [frac] | 1 21/32 inch |
| F [inch] | 1.652 inch |
| Weight per UOM [lbs/UOM] | 3.29 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 2" |
|---|---|
| End Size 2 [inch|mm] | 2" |
| End Type 1 | Socket |
| End Type 2 | Socket |
| Operating Pressure 1 [PSI] | 340 psi |
| Operating Pressure 2 [PSI] | 190 psi |
| Operating Pressure 3 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
| Prop 65 label required? | No |
