PR4351500

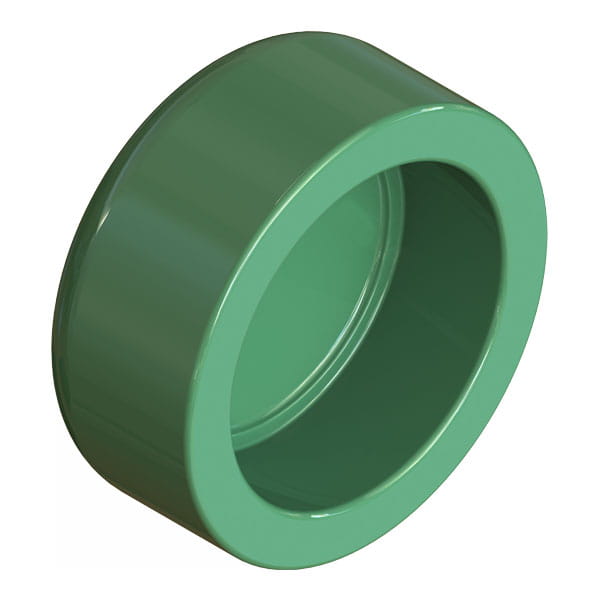

Uponor PP-RCT End Cap, 1 1/2

Part no.PR4351500
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]2 47/64 inch
A [inch]2.74 inch
B [frac]1 15/16 inch
B [inch]1.937 inch
C [frac]1 23/64 inch
C [inch]1.358 inch
D [frac]55/64 inch
D [inch]0.866 inch
E [frac]1 3/8 inch
E [inch]1.37 inch
Weight per UOM [lbs/UOM]0.18 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/2"
End Type 1Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
