PR17435120

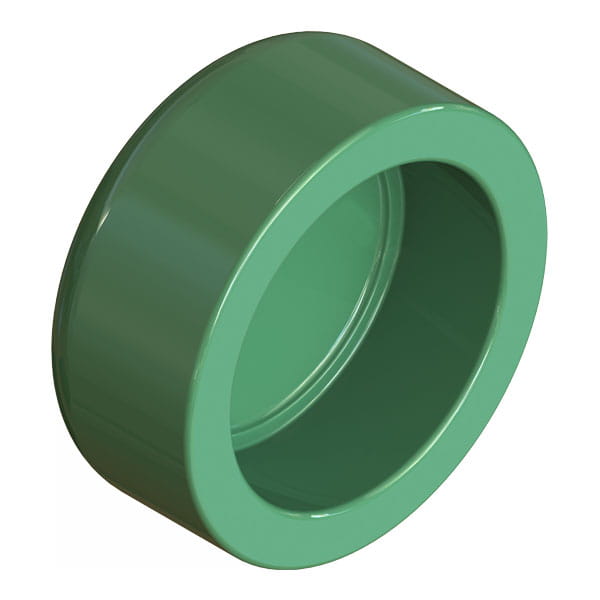

Uponor PP-RCT End Cap, 12", SDR 17.6

Part no.PR17435120
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]12 7/16 inch
A [inch]12.433 inch
B [frac]10 31/32 inch
B [inch]10.969 inch
C [frac]4 43/64 inch
C [inch]4.679 inch
D [frac]2 21/32 inch
D [inch]2.652 inch
E [frac]6 7/32 inch
E [inch]6.217 inch
Weight per UOM [lbs/UOM]8.37 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]12"
End Type 1Butt
Operating Pressure 1 [PSI]130 psi
Operating Pressure 2 [PSI]70 psi
Operating Pressure 3 [PSI]50 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
