PR4353000

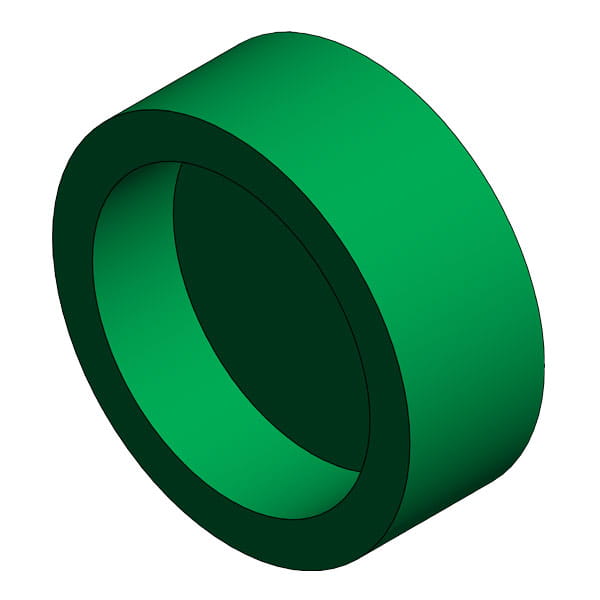

Uponor PP-RCT End Cap, 3

Part no.PR4353000
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]4 45/64 inch
A [inch]4.697 inch
B [frac]3 33/64 inch
B [inch]3.516 inch
C [frac]2 9/32 inch
C [inch]2.278 inch
D [frac]1 19/64 inch
D [inch]1.299 inch
E [frac]2 11/32 inch
E [inch]2.348 inch
Weight per UOM [lbs/UOM]0.8 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3"
End Type 1Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
