PR4771350

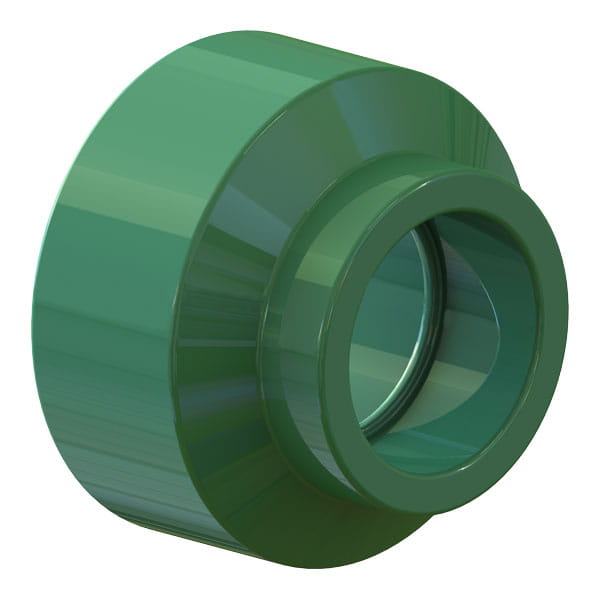

Uponor PP-RCT Fitting Reducer, 1 1/4" x 1/2

Part no.PR4771350
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 37/64 inch
A [inch]1.575 inch
B [frac]37/64 inch
B [inch]0.571 inch
C [frac]15/16 inch
C [inch]0.931 inch
D [frac]1 1/2 inch
D [inch]1.502 inch
E [frac]25/32 inch
E [inch]0.787 inch
F [frac]3/4 inch
F [inch]0.756 inch
G [frac]3/8 inch
G [inch]0.378 inch
Equivalent length through [ft]1.7 ft
Weight per UOM [lbs/UOM]0.04 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1/2"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
