PR4772013

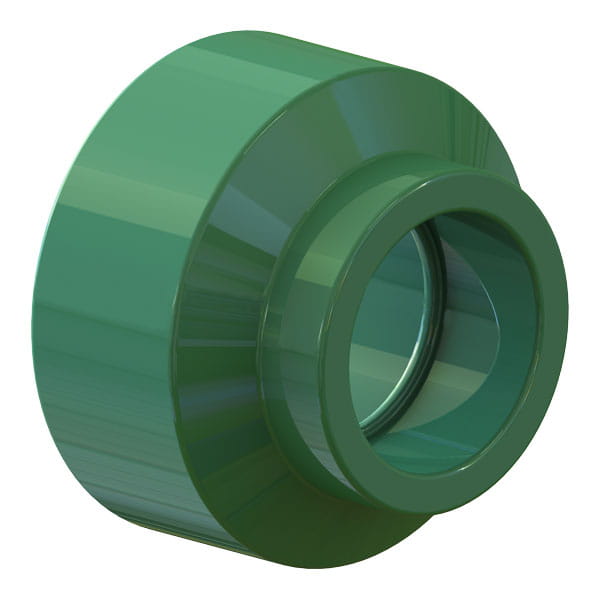

Uponor PP-RCT Fitting Reducer, 2" x 1 1/4

Part no.PR4772013
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]2 31/64 inch
A [inch]2.48 inch
B [frac]53/64 inch
B [inch]0.827 inch
C [frac]1 47/64 inch
C [inch]1.732 inch
D [frac]2 9/16 inch
D [inch]2.559 inch
E [frac]1 15/64 inch
E [inch]1.24 inch
F [frac]1 35/64 inch
F [inch]1.543 inch
G [frac]49/64 inch
G [inch]0.772 inch
Equivalent length through [ft]2.8 ft
Weight per UOM [lbs/UOM]0.19 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2"
End Size 2 [inch|mm]1-1/4"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
