PR4773025

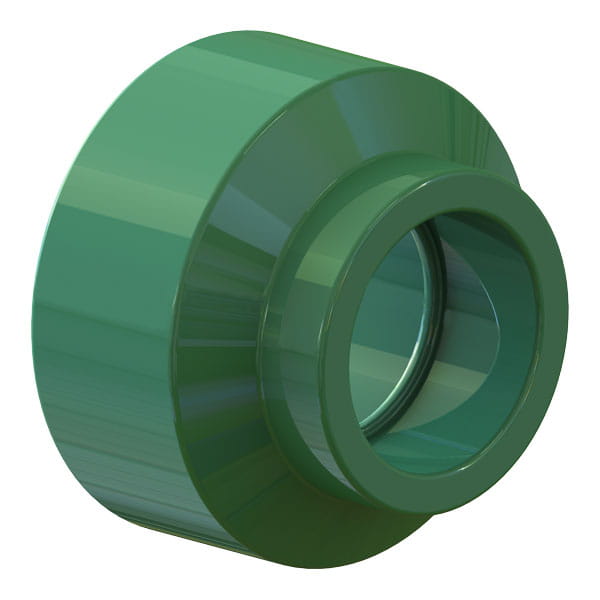

Uponor PP-RCT Fitting Reducer, 3" x 2 1/2

Part no.PR4773025
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]3 9/16 inch
A [inch]3.559 inch
B [frac]1 7/32 inch
B [inch]1.22 inch
C [frac]1 13/16 inch
C [inch]1.811 inch
D [frac]3 1/32 inch
D [inch]3.031 inch
E [frac]1 25/32 inch
E [inch]1.78 inch
F [frac]2 59/64 inch
F [inch]2.922 inch
G [frac]1 15/32 inch
G [inch]1.461 inch
Equivalent length through [ft]3.9 ft
Weight per UOM [lbs/UOM]0.7 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3"
End Size 2 [inch|mm]2-1/2"
End Type 1Socket
End Type 2Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
