PR94774025

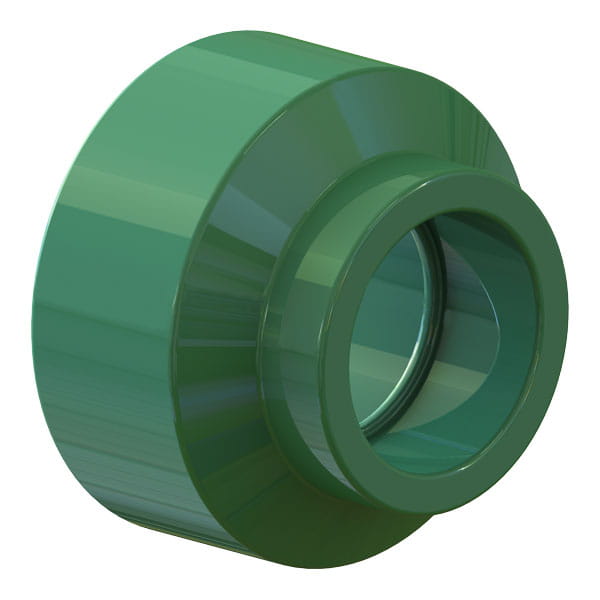

Uponor PP-RCT Fitting Reducer, 4" x 2 1/2", SDR 9

Part no.PR94774025
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]4 59/64 inch
A [inch]4.921 inch
B [frac]1 3/16 inch
B [inch]1.181 inch
C [frac]1 3/8 inch
C [inch]1.371 inch
D [frac]2 35/64 inch
D [inch]2.552 inch
E [frac]2 29/64 inch
E [inch]2.461 inch
F [frac]3 29/32 inch
F [inch]3.909 inch
G [frac]1 61/64 inch
G [inch]1.955 inch
Equivalent length through [ft]8.4 ft
Weight per UOM [lbs/UOM]0.82 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]4"
End Size 2 [inch|mm]2-1/2"
End Type 1Butt
End Type 2Socket
Operating Pressure 1 [PSI]265 psi
Operating Pressure 2 [PSI]150 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
