PR2982000

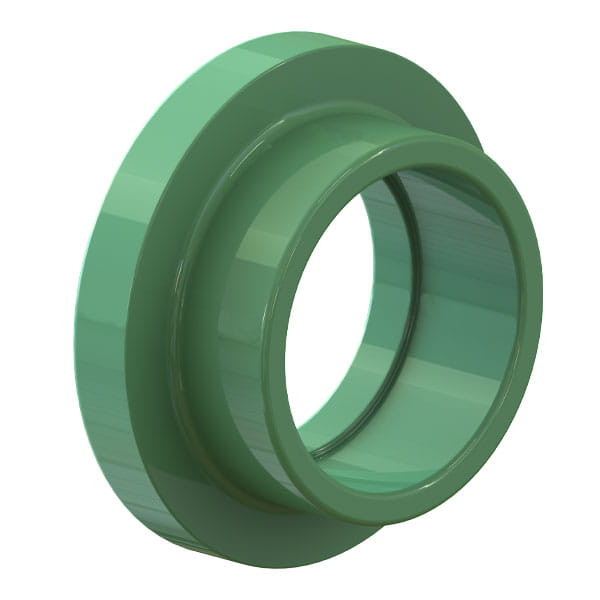

Uponor PP-RCT Flange Adapter, 2

Part no.PR2982000
StatusActive

Part information and details

Codes

CodesCMC

Dimensions

B [frac]3 15/16 inch
B [inch]3.937 inch
C [frac]2 61/64 inch
C [inch]2.949 inch
D [frac]27/64 inch
D [inch]0.417 inch
E [frac]1 1/2 inch
E [inch]1.496 inch
F [frac]1 15/32 inch
Weight per UOM [lbs/UOM]0.22 lbs/uom
G [inch]1.969 inch
G [frac]1 31/32 inch
F [inch]1.474 inch
A [inch]1.079 inch
A [frac]1 5/64 inch

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2"
Material groupPP-RCT
Operating Temperature 3 [°F]180 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 1 [°F]73 °f
Operating Pressure 3 [PSI]100 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 1 [PSI]340 psi
End Type 2Flange
End Type 1Socket
