PR1129860

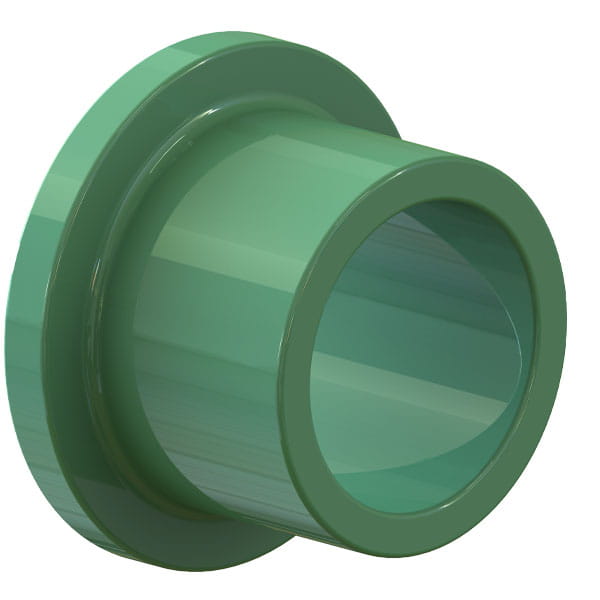

Uponor PP-RCT Flange Adapter, 6", SDR 11

Part no.PR1129860
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]7 45/64 inch
A [inch]7.697 inch
B [frac]8 1/2 inch
B [inch]8.504 inch
C [frac]6 11/32 inch
C [inch]6.339 inch
D [frac]4 1/4 inch
D [inch]4.252 inch
Weight per UOM [lbs/UOM]3.99 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM F1960|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]6"
End Type 1Butt
End Type 2Flange
Operating Pressure 1 [PSI]215 psi
Operating Pressure 2 [PSI]120 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
