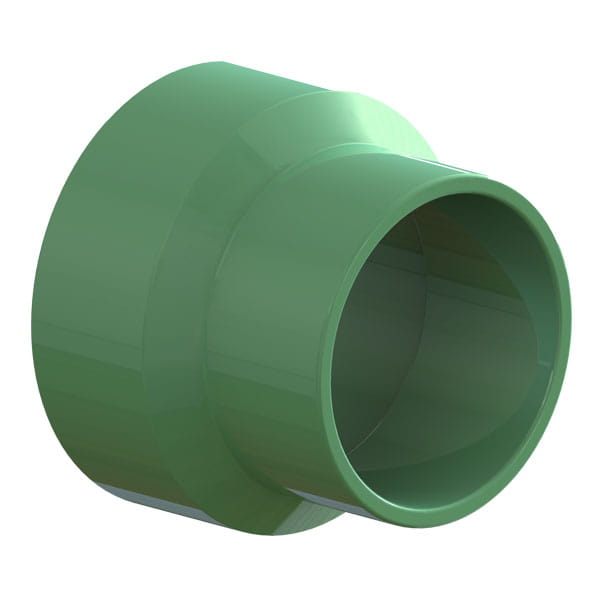

Uponor PP-RCT Reducer, 12" x 10", SDR 9
Part no.PR94771210
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 12 13/32 inch |
|---|---|
| A [inch] | 12.402 inch |
| B [frac] | 9 27/32 inch |
| B [inch] | 9.843 inch |
| C [frac] | 8 5/64 inch |
| C [inch] | 8.071 inch |
| Equivalent length through [ft] | 20.1 ft |
| Weight per UOM [lbs/UOM] | 7.49 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | NSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 12" |
|---|---|
| End Size 2 [inch|mm] | 10" |
| End Type 1 | Butt |
| End Type 2 | Butt |
| Operating Pressure 1 [PSI] | 265 psi |
| Operating Pressure 2 [PSI] | 150 psi |
| Operating Pressure 3 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
