PR94776040

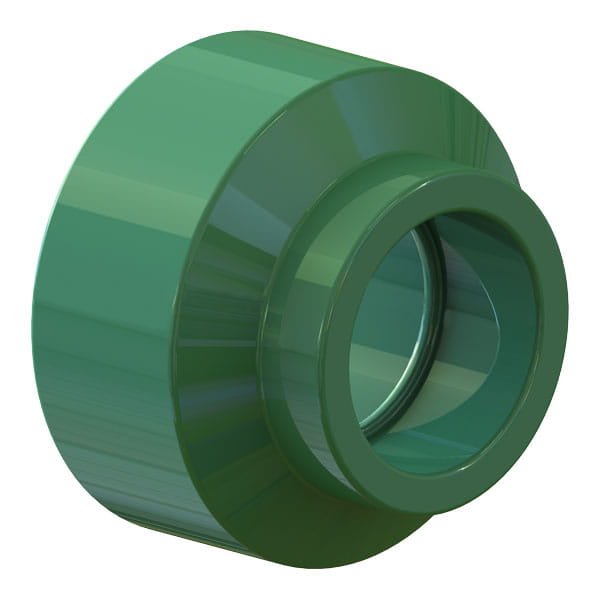

Uponor PP-RCT Reducer, 6" x 4", SDR 9, Butt to Socket Fusion

Part no.PR94776040
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]6 19/64 inch
A [inch]6.299 inch
B [frac]1 37/64 inch
B [inch]1.575 inch
C [frac]1 49/64 inch
C [inch]1.772 inch
D [frac]3 11/32 inch
D [inch]3.346 inch
E [frac]3 5/32 inch
E [inch]3.15 inch
F [frac]6 17/32 inch
F [inch]6.528 inch
G [frac]3 17/64 inch
G [inch]3.264 inch
Equivalent length through [ft]9.5 ft
Weight per UOM [lbs/UOM]1.6 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]6"
End Size 2 [inch|mm]4"
End Type 1Butt
End Type 2Socket
Operating Pressure 1 [PSI]265 psi
Operating Pressure 2 [PSI]150 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
