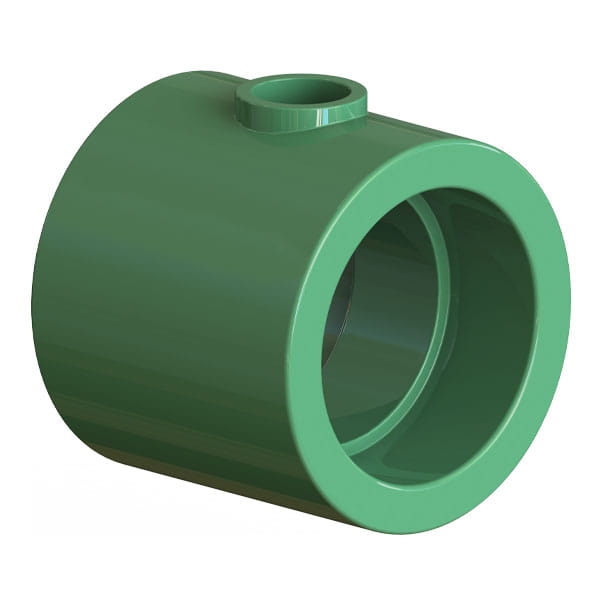

Uponor PP-RCT Reducing Tee, 1 1/4" x 1 1/4" x 1/2

Part no.PR4751350

Find a distributor

Availability of specific products varies by distributor.

Part information and details




A [frac]53/64 inch
A [inch]0.827 inch
B [frac]29/64 inch
B [inch]0.449 inch
C [frac]29/64 inch
C [inch]0.449 inch
D [frac]53/64 inch
D [inch]0.827 inch
E [frac]27/32 inch
E [inch]0.846 inch
F [frac]39/64 inch
F [inch]0.61 inch
G [frac]2 35/64 inch
G [inch]2.551 inch
H [frac]2 37/64 inch
H [inch]2.579 inch
I [frac]2 1/4 inch
I [inch]2.244 inch
J [frac]9/16 inch
J [inch]0.557 inch
K [frac]1 1/8 inch
K [inch]1.122 inch
Equivalent length branch [ft]2.6 ft
Equivalent length through [ft]1.1 ft
Weight per UOM [lbs/UOM]0.19 lbs/uom


ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775


StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Size 3 [inch|mm]1/2"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]140 °F
Operating Temperature 3 [°F]180 °F
Material groupPP-RCT
