PR4751331

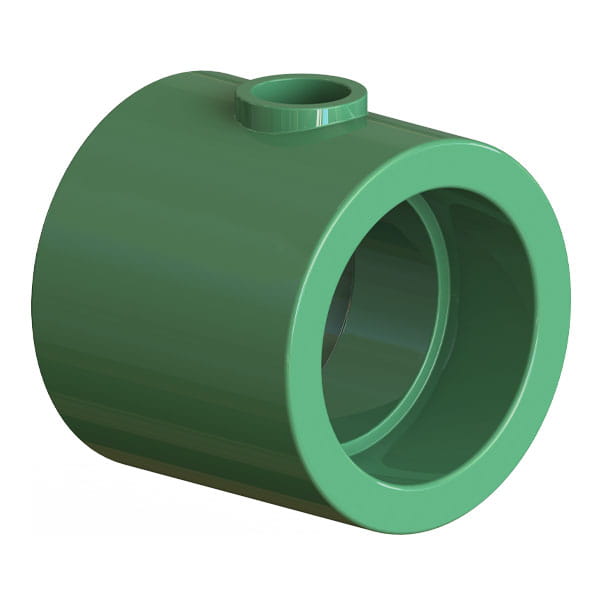

Uponor PP-RCT Reducing Tee, 1 1/4" x 1 1/4" x 1

Part no.PR4751331
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]27/32 inch
A [inch]0.846 inch
B [frac]43/64 inch
B [inch]0.669 inch
C [frac]43/64 inch
C [inch]0.669 inch
D [frac]27/32 inch
D [inch]0.846 inch
E [frac]27/32 inch
E [inch]0.846 inch
F [frac]3/4 inch
F [inch]0.748 inch
G [frac]3 1/32 inch
G [inch]3.031 inch
H [frac]2 23/32 inch
H [inch]2.713 inch
I [frac]2 15/64 inch
I [inch]2.236 inch
J [frac]57/64 inch
J [inch]0.886 inch
K [frac]1 1/8 inch
K [inch]1.118 inch
Equivalent length branch [ft]4.2 ft
Equivalent length through [ft]1.1 ft
Weight per UOM [lbs/UOM]0.24 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Size 3 [inch|mm]1"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
