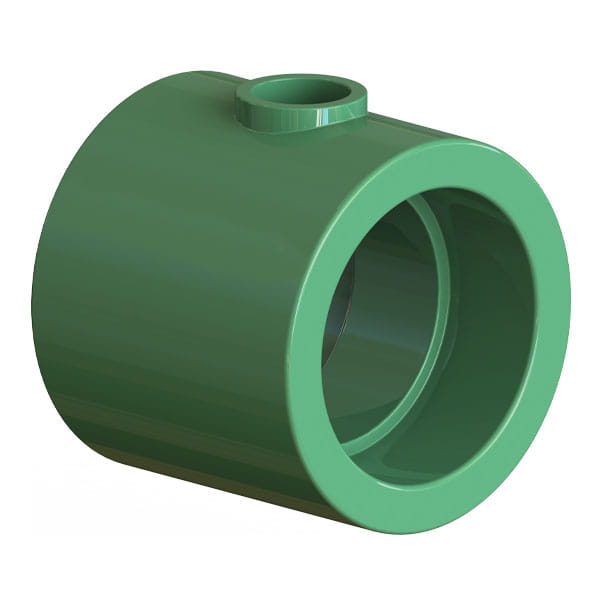

Uponor PP-RCT Reducing Tee, 1" x 1" x 3/4

Part no.PR4751175

StatusActive

Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [frac]	47/64 inch
A [inch]	0.728 inch
B [frac]	37/64 inch
B [inch]	0.571 inch
C [frac]	37/64 inch
C [inch]	0.571 inch
D [frac]	47/64 inch
D [inch]	0.728 inch
E [frac]	43/64 inch
E [inch]	0.669 inch
F [frac]	43/64 inch
F [inch]	0.669 inch
G [frac]	2 19/32 inch
G [inch]	2.598 inch
H [frac]	2 7/32 inch
H [inch]	2.224 inch
I [frac]	1 49/64 inch
I [inch]	1.772 inch
J [frac]	11/16 inch
J [inch]	0.689 inch
K [frac]	57/64 inch
K [inch]	0.886 inch
Equivalent length branch [ft]	3.3 ft
Equivalent length through [ft]	0.9 ft
Weight per UOM [lbs/UOM]	0.13 lbs/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Size 1 [inch\|mm]	1"
End Size 2 [inch\|mm]	1"
End Size 3 [inch\|mm]	3/4"
End Type 1	Socket
End Type 2	Socket
End Type 3	Socket
Operating Pressure 1 [PSI]	340 psi
Operating Pressure 2 [PSI]	190 psi
Operating Pressure 3 [PSI]	100 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	140 °F
Operating Temperature 3 [°F]	180 °F
Material group	PP-RCT

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [mm / String]	18.50 mm/string
B [mm / String]	14.50 mm/string
C [mm / String]	14.50 mm/string
D [mm / String]	18.50 mm/string
E [mm / String]	17 mm/string
F [mm / String]	17 mm/string
G [mm / String]	66 mm/string
H [mm / String]	56.50 mm/string
I [mm / String]	45 mm/string
J [mm / String]	17.50 mm/string
K [mm / String]	22.50 mm/string
Equivalent length branch [m]	1.006 m
Equivalent length through [m]	0.274 m
Weight per UOM [kg/UOM]	0.059 kg/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Type 1	Socket
End Type 2	Socket
End Type 3	Socket
Operating Pressure 1 [bar]	23.44 bar
Operating Pressure 2 [bar]	13.1 bar
Operating Pressure 3 [bar]	6.9 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	60 °C
Operating Temperature 3 [°C]	82 °C
Material group	PP-RCT
