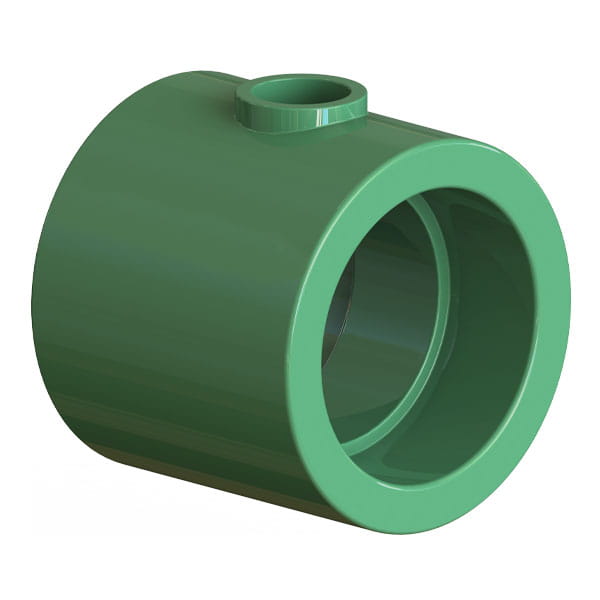

Uponor PP-RCT Reducing Tee, 2 1/2" x 2 1/2" x 1 1/4

Part no.PR4752513

Find a distributor

Availability of specific products varies by distributor.

Part information and details




A [frac]1 3/16 inch
A [inch]1.181 inch
B [frac]55/64 inch
B [inch]0.866 inch
C [frac]55/64 inch
C [inch]0.866 inch
D [frac]1 3/16 inch
D [inch]1.181 inch
E [frac]1 15/32 inch
E [inch]1.476 inch
F [frac]13/16 inch
F [inch]0.807 inch
G [frac]4 3/32 inch
G [inch]4.094 inch
H [frac]4 15/64 inch
H [inch]4.238 inch
I [frac]3 29/32 inch
I [inch]3.909 inch
J [frac]1 1/32 inch
J [inch]1.024 inch
K [frac]1 61/64 inch
K [inch]1.955 inch
Equivalent length branch [ft]5.2 ft
Equivalent length through [ft]2.1 ft
Weight per UOM [lbs/UOM]0.84 lbs/uom


ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775


StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2-1/2"
End Size 2 [inch|mm]2-1/2"
End Size 3 [inch|mm]1-1/4"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]140 °F
Operating Temperature 3 [°F]180 °F
Material groupPP-RCT
