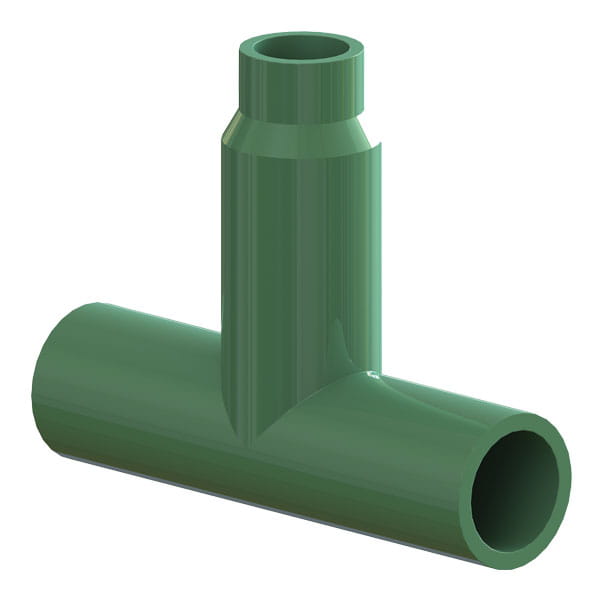

Uponor PP-RCT Reducing Tee, Cold Potable, 8" x 8" x 4", SDR 11

Part no.PR114758840
StatusActive

Part information and details

Codes

CodesUPC|IRC|IPC|NPC of Canada|UMC|CMC|CPC|IMC

Dimensions

A [frac]13 25/32 inch
A [inch]13.78 inch
B [frac]13 25/32 inch
B [inch]13.78 inch
C [frac]16 1/16 inch
C [inch]16.063 inch
D [frac]20 inch
D [inch]20 inch
E [frac]27 9/16 inch
E [inch]27.559 inch
F [frac]23 15/16 inch
F [inch]23.937 inch
G [frac]7 7/8 inch
G [inch]7.874 inch
H [frac]4 59/64 inch
H [inch]4.921 inch
Equivalent length branch [ft]20.1 ft
Equivalent length through [ft]6.7 ft
Weight per UOM [lbs/UOM]22.13 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775|NSF-51

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]8" inch|mm
End Size 2 [inch|mm]8" inch|mm
End Size 3 [inch|mm]4" inch|mm
End Type 1Butt
End Type 2Butt
End Type 3Butt
Operating Pressure 1 [PSI]215 psi
Operating Pressure 2 [PSI]120 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
