pr47810015

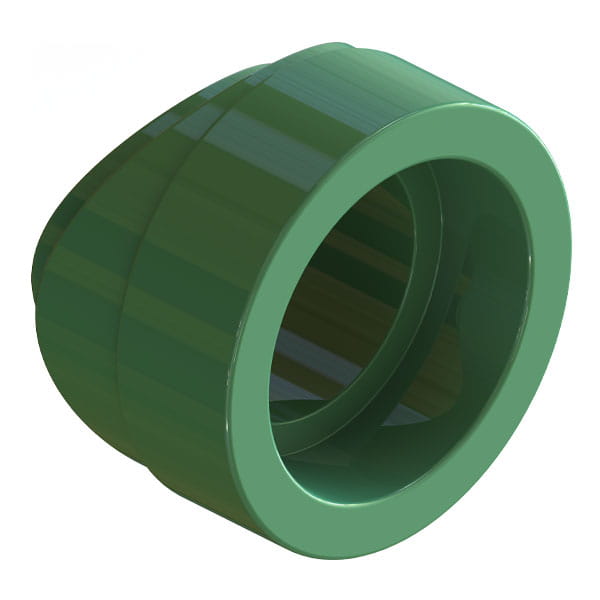

Uponor PP-RCT Saddle, 10" x 1 1/2", for Outlet Fusion

Part no.PR47810015
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]59/64 inch
A [inch]0.925 inch
B [frac]13/64 inch
B [inch]0.197 inch
C [frac]1 31/32 inch
C [inch]1.969 inch
D [frac]2 25/64 inch
D [inch]2.393 inch
E [frac]2 19/32 inch
E [inch]2.594 inch
F [frac]9 7/8 inch
F [inch]9.875 inch
Weight per UOM [lbs/UOM]0.2 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]10"
End Size 2 [inch|mm]1-1/2"
End Type 1Saddle
End Type 2Socket
Material groupPP-RCT
