PR47810025

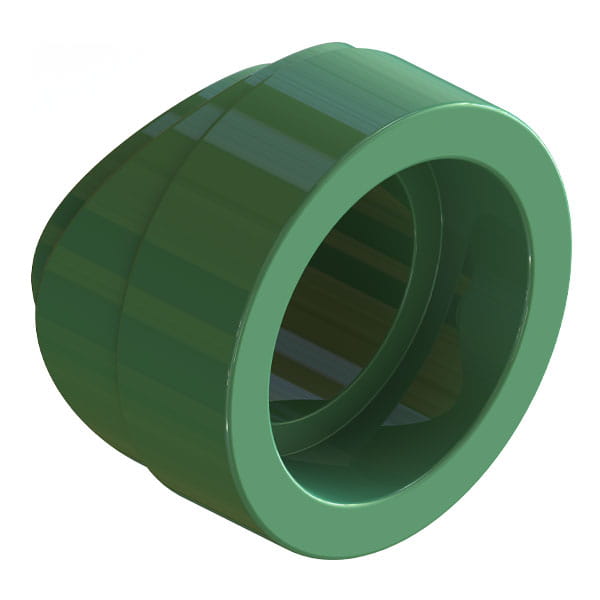

Uponor PP-RCT Saddle, 10" x 2 1/2", for Outlet Fusion

Part no.PR47810025
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 17/64 inch
A [inch]1.26 inch
B [frac]25/64 inch
B [inch]0.394 inch
C [frac]2 61/64 inch
C [inch]2.961 inch
D [frac]3 5/64 inch
D [inch]3.074 inch
E [frac]3 5/8 inch
E [inch]3.63 inch
F [frac]9 7/8 inch
F [inch]9.874 inch
Equivalent length through [ft]2.5 ft

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]10"
End Size 2 [inch|mm]2-1/2"
End Type 1Saddle
End Type 2Socket
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
