PR47810040

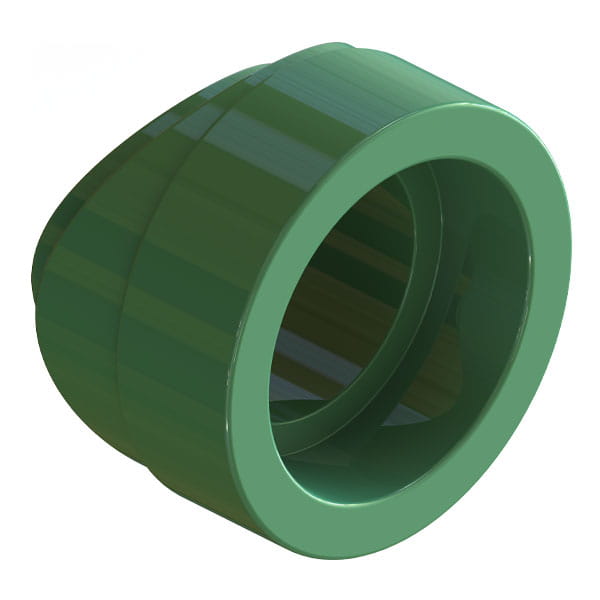

Uponor PP-RCT Saddle, 10" x 4", for Outlet Fusion

Part no.PR47810040
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 47/64 inch
A [inch]1.732 inch
B [frac]33/64 inch
B [inch]0.512 inch
C [frac]4 59/64 inch
C [inch]4.929 inch
D [frac]4 17/64 inch
D [inch]4.269 inch
E [frac]6 3/64 inch
E [inch]6.043 inch
F [frac]9 7/8 inch
F [inch]9.874 inch
Equivalent length through [ft]5 ft

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]10"
End Size 2 [inch|mm]4"
End Type 1Saddle
End Type 2Socket
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
