pr4783013

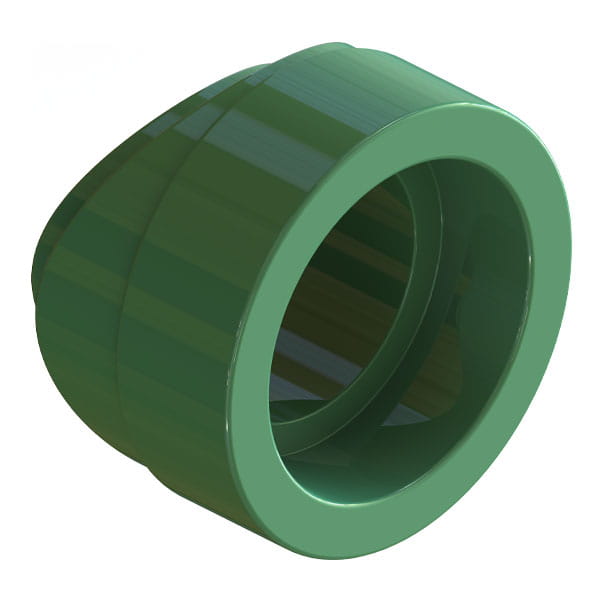

Uponor PP-RCT Saddle, 3" x 1 1/4", for Outlet Fusion

Part no.PR4783013
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]13/16 inch
A [inch]0.807 inch
B [frac]17/64 inch
B [inch]0.264 inch
C [frac]1 37/64 inch
C [inch]1.575 inch
D [frac]1 23/32 inch
D [inch]1.716 inch
E [frac]2 3/64 inch
E [inch]2.047 inch
F [frac]3 35/64 inch
F [inch]3.544 inch
Equivalent length through [ft]3 ft
Weight per UOM [lbs/UOM]0.09 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3"
End Size 2 [inch|mm]1-1/4"
End Type 1Saddle
End Type 2Socket
Material groupPP-RCT
