PR4783075

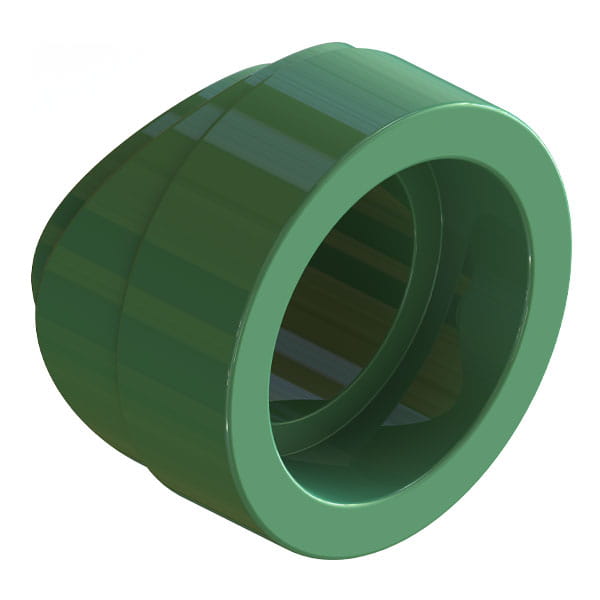

Uponor PP-RCT Saddle, 3" x 3/4", for Outlet Fusion

Part no.PR4783075
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]5/8 inch
A [inch]0.63 inch
B [frac]11/64 inch
B [inch]0.165 inch
C [frac]63/64 inch
C [inch]0.984 inch
D [frac]1 3/8 inch
D [inch]1.377 inch
E [frac]1 1/2 inch
E [inch]1.496 inch
F [frac]3 35/64 inch
F [inch]3.543 inch
Equivalent length through [ft]0.8 ft

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3"
End Size 2 [inch|mm]3/4"
End Type 1Saddle
End Type 2Socket
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
