PR4788015

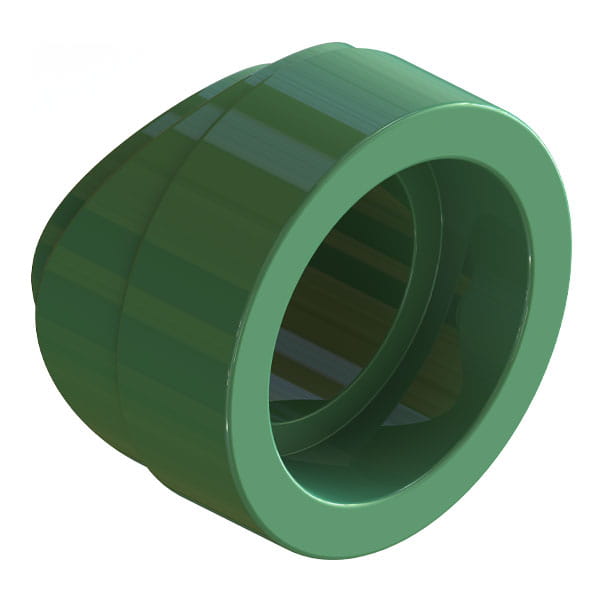

Uponor PP-RCT Saddle, 8" x 1 1/2", for Outlet Fusion

Part no.PR4788015
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]63/64 inch
A [inch]0.984 inch
B [frac]5/16 inch
B [inch]0.315 inch
C [frac]1 31/32 inch
C [inch]1.976 inch
D [frac]2 3/8 inch
D [inch]2.37 inch
E [frac]2 13/32 inch
E [inch]2.409 inch
F [frac]7 57/64 inch
F [inch]7.898 inch
Equivalent length through [ft]1.7 ft

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]8"
End Size 2 [inch|mm]1-1/2"
End Type 1Saddle
End Type 2Socket
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
