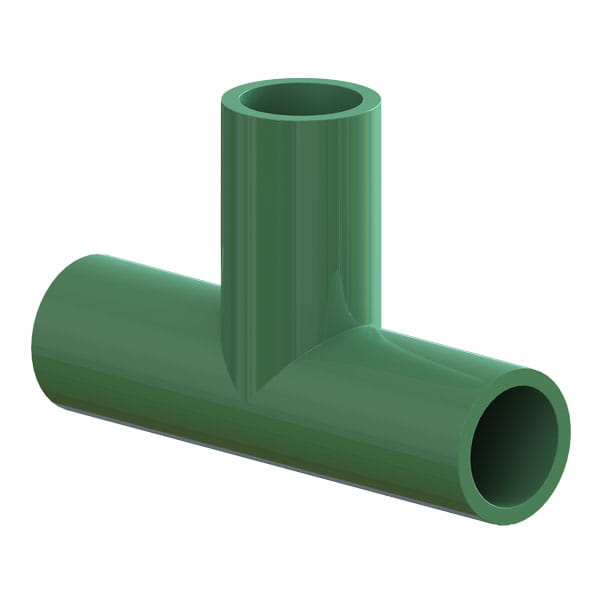

Uponor PP-RCT Tee, Cold Potable, 8" x 8" x 8", SDR 11
Part no.PR1147580
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 13 25/32 inch |
|---|---|
| A [inch] | 13.78 inch |
| B [frac] | 13 25/32 inch |
| B [inch] | 13.78 inch |
| C [frac] | 9 27/32 inch |
| C [inch] | 9.843 inch |
| D [frac] | 13 25/32 inch |
| D [inch] | 13.78 inch |
| E [frac] | 27 9/16 inch |
| E [inch] | 27.559 inch |
| F [frac] | 17 23/32 inch |
| F [inch] | 17.717 inch |
| G [frac] | 7 7/8 inch |
| G [inch] | 7.874 inch |
| H [frac] | 7 7/8 inch |
| H [inch] | 7.874 inch |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 8" |
|---|---|
| End Size 2 [inch|mm] | 8" |
| End Size 3 [inch|mm] | 8" |
| End Type 1 | Butt |
| End Type 2 | Butt |
| End Type 3 | Butt |
