PR17475100

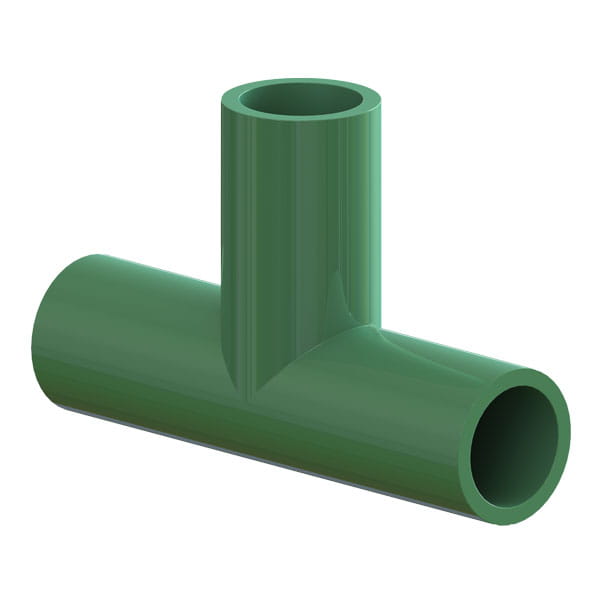

Uponor PP-RCT Tee, Mechanical, 10" x 10" x 10", SDR 17.6

Part no.PR17475100
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]17 23/32 inch
A [inch]17.717 inch
B [frac]17 23/32 inch
B [inch]17.717 inch
C [frac]12 51/64 inch
C [inch]12.795 inch
D [frac]17 23/32 inch
D [inch]17.717 inch
E [frac]35 7/16 inch
E [inch]35.433 inch
F [frac]22 41/64 inch
F [inch]22.638 inch
G [frac]9 27/32 inch
G [inch]9.843 inch
H [frac]9 27/32 inch
H [inch]9.843 inch

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]10"
End Size 2 [inch|mm]10"
End Size 3 [inch|mm]10"
End Type 1Butt
End Type 2Butt
End Type 3Butt
