pr4791575

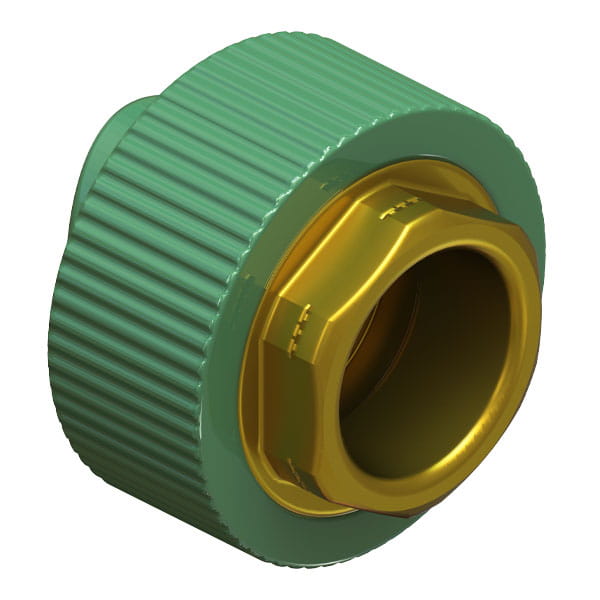

Uponor PP-RCT Transition Saddle, 1 1/2" x 3/4", Female NPT, for Outlet Fusion

Part no.PR4791575
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]13/32 inch
A [inch]0.4 inch
B [frac]1 23/64 inch
B [inch]1.366 inch
C [frac]35/64 inch
C [inch]0.553 inch
D [frac]1 45/64 inch
D [inch]1.705 inch
E [frac]1 49/64 inch
E [inch]1.766 inch
F [frac]55/64 inch
F [inch]0.853 inch
G [frac]13/16 inch
G [inch]0.813 inch
H [frac]31/64 inch
H [inch]0.492 inch
I [frac]63/64 inch
I [inch]0.984 inch
J [frac]1 31/32 inch
J [inch]1.969 inch
Equivalent length through [ft]1.4 ft
Weight per UOM [lbs/UOM]0.19 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/2"
End Size 2 [inch|mm]3/4"
End Type 1Saddle
End Type 2FNPT
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
