5550040

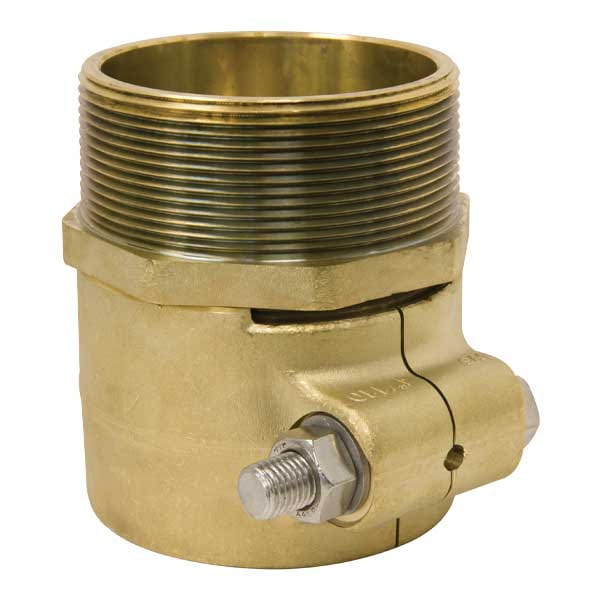

WIPEX Fitting 4" x 4" NPT

Part no.5550040
StatusActive

Part information and details

Codes

CodesIMC|UMC

Dimensions

A [frac]5 33/64 inch
A [inch]5.52 inch
B [frac]5 35/64 inch
B [inch]5.551 inch
C [frac]4 23/32 inch
C [inch]4.724 inch
Weight per UOM [lbs/UOM]10 lbs/uom

Listings

ListingsIAPMO-ES

Standards

StandardsCSA B137.5|NSF-14|ASTM F877

Technical Data

End Size 1 [inch|mm]4"
End Size 2 [inch|mm]4"
End Type 1Compression
End Type 2MNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material o-ringEthylene propylene diene monomer (EPDM) rubber
Prop 65 label required?Yes
Submittal Subcomponent MaterialBody: DZR (dezincification-resistant) brass Clamp ring: DZR brass Bolt: Stainless steel Nut: Stainless steel Washer: Stainless steel
