Uponor Shanghai office, China , Shanghai, China
Uponor Shanghai office, China

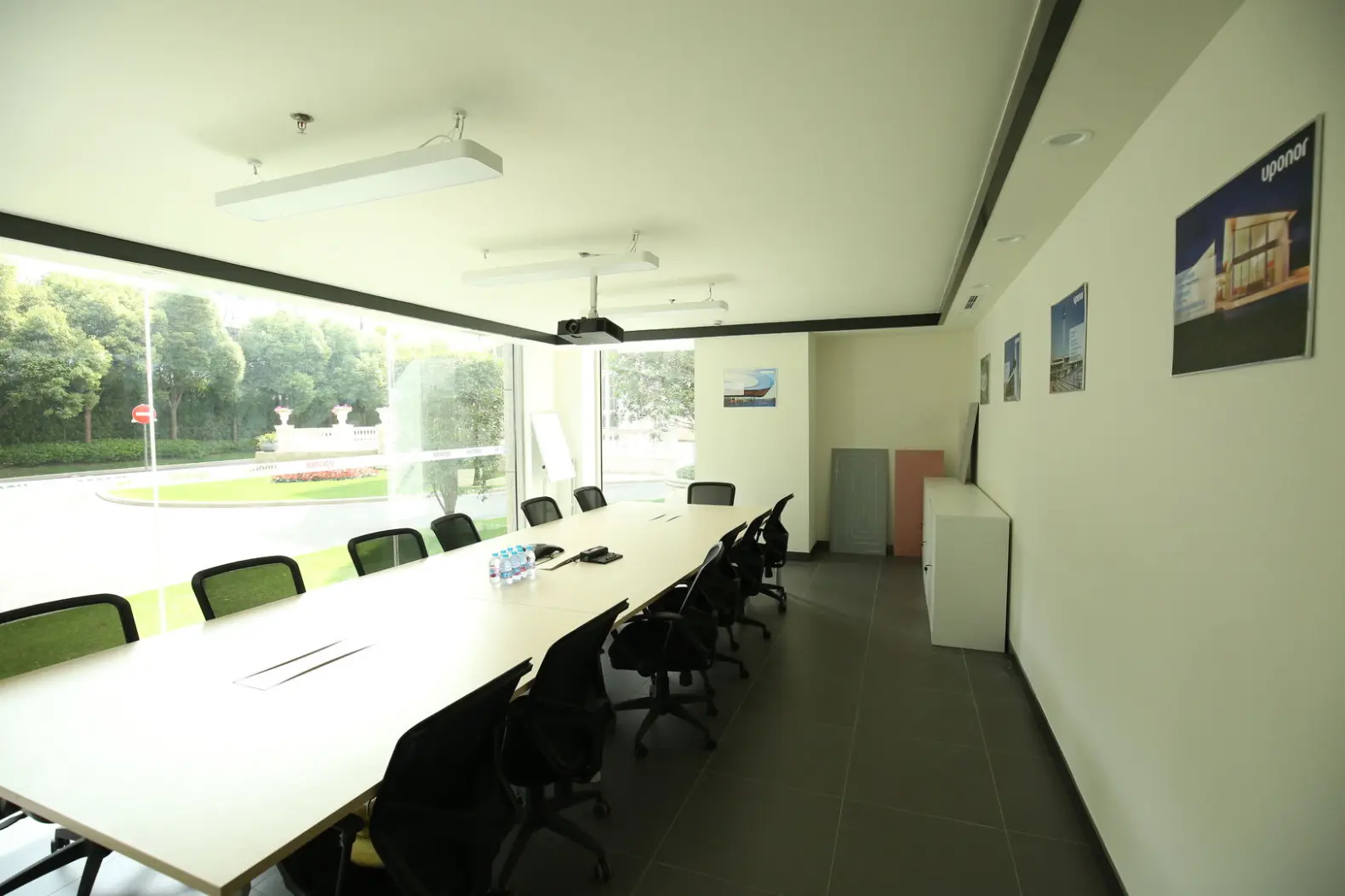

On the other hand, Uponor PEX-a pipe underfloor heating and invisible supply air duct are also installed in the whole office. DOAS (dedicated outdoor air system) in parallel with radiant cooling has been also applied. Cooling load of the conditioned space has been split into sensible load (36kW) and latent load (12kW). 100% of the internal latent load and 30% of the internal sensible load are covered by the DOAS. The remaining sensible load is covered by the Uponor radiant cooling system and controlled by Uponor Smatrix Wave Plus individual room controller. It constantly monitors changes in conditions inside and outside the building. By intelligently adjusting and adapting, Uponor Smatrix ensures that just the right amount of energy is used at just the right time.
This is already the third project we using DOAS in parallel with Uponor Radiant heating and cooling system in Asia region. With a combination with DOAS used in the case, it consists of two VSD fans for exhaust, fresh air and a mixing chamber. It allows maintaining healthy CO₂ levels at the same time to provide fresh air to the office space.
Uponor TABS i Sluppenveien 17
Se komplett brosjyre for prosjektet >>>
Nye Deichmanske bibliotek – Bjørvika, Oslo
ALLE ILLUSTRASJONER TILHØRER LUND HAGEM ARKITEKTER
Bayer Qingdao ECB Lighthouse
Concrete core activation ČSOB Prague
Concrete core activation České Budějovice Research Library
S Group’s logistics centre for utility items
The installation of Uponor storm water cassettes in Shopping Center Karisma, Lahti
Remotely controlled security and convenience in temporary school building
Stable heating and draftless cooling from the ceiling
Varicool heating and cooling panels were installed to the meeting room's ceiling. The new hydronic system replaced the old fan coil unit system. Varicool system is a radiant heating and cooling system. The panels do not heat or cool the indoor air directly but the surfaces what radiant covers.
Kiviniityn Auto- ja Maatalouskonehuolto acquired a new underfloor heating and cooling solution
Technopolis Innova 2 in Jyväskylä, Finland is heated by energy piles
The Kastelli community utilises smart building services
Uponor's head office is a model example of energy efficiency
Day-care centre to be built with energy piles
Klimahaus Bremerhaven 8°
Energy Efficiency Center
Brain Box Berlin
Thermal concrete core activation with Uponor Contec provides economical, energy-efficient and sustainable building temperature control in the new landmark Adlershof Science and Technology Centre.
A hygienically optimal drinking water installation was integrated into the new office complex – thanks to Uni Pipe PLUS within a very short time.
First Uponor Comfort Panel project in Hungary
First radiant ceiling cooling renovation project in tropical climate
First radiant ceiling cooling renovation project in tropical climate – Singapore
Palazzo Ferrazzi - Brescia
Posco Green building
LH Headquarter in Jinju
Passive building with high energy efficiency
National Library of Latvia
Immeuble Delta Green
La dalle active Uponor est intégrée depuis 2017 dans l’immeuble Delta Green, bâtiment tertiaire de 4600m2 comprenant 4 niveaux. Celui-ci est le premier bâtiment de la région tout à fait autonome en énergie.
Swedbank Head Office
Tap water system in new Swedbank head office.
Lithuanian National Art Gallery
"Sostena" Business Centre
Concrete Core Heating and Cooling Systems, Piešťany
Car dealership in El Escorial, Madrid
Zero emissions, maximum comfort
Uponor Iberia headquarters and logistics hub - Móstoles, Madrid
BESEL Head offices in Madrid
Länsförsäkringar Office building complex
BAE Systems Rochester
Sunesis school scheme: Sacred Heart Primary School, West Midlands
Uponor were nominated as the sole supplier for radiant heating systems for the Sunesis Schools schemes, with Main Contractor Willmott Dixon. Sunesis is a Joint Venture between Scape and Willmott Dixon, built on the combined experience of public sector know-how and private expertise. They are the market leader in delivering pre-designed buildings across a range of market sectors. Every design has a defined layout, specification, fixed cost and timescale to construct. The full benefits of a full BIM model are also utilised.
Reconstruction of the office building of the Pharmaceutical Company "Darnitsa"
Demo smart house «IC Smart HOUSE live»
Shopping and office center
The extension of Veljekset Keskinen is heated with Uponor's underfloor heating system
HAMK's zero-energy hall uses energy piles
Institut les Mines Telecoms Saclay
Le bâtiment d’enseignement supérieur et de recherche pour l’Institut Mines-Télécom intègre un système de dalle active sur une surface de 40 000 m2. Le bâtiment économe en énergie accueillera une gamme variée d’activités propres à l’Institut Mines - Télécom : formations, recherches, transfert et innovation.
Villeroy & Boch
Poslovni centar Adris grupe
Magnum Business center
MAGNUM – a brand new business centre. One of the largest in Kaunas city in Lithuania.
MAGNUM aims to introduce positive change, an innovative work culture, and a responsible attitude to the environment. It will inspire these aims not only in its residents, but in the city of Kaunas itself — a city that is rapidly growing and changing.
