Uponor
Case study

阿里巴巴董事局办公楼, 杭州, China

阿里巴巴董事局办公楼

阿里巴巴董事局办公楼是马云耗资打造的奢华中式建筑办公场所,也是阿里巴巴首次自建工作园区,5,000平米的欧博诺辐射供暖供冷系统的铺设,在为阿里巴巴董事局成员提供温暖舒适的同时,也为2017年新春杭州成为政府层面推动南方采暖的首个城市加码。

Project Facts

杭州, China
办公楼
辐射供暖供冷
Completion: 2016

Uponor Involvement

5,000sqm

阿里巴巴董事局办公楼是马云耗资打造的奢华中式建筑办公场所,也是阿里巴巴首次自建工作园区,5,000平米的欧博诺辐射供暖供冷系统的铺设,在为阿里巴巴董事局成员提供温暖舒适的同时,也为2017年新春杭州成为政府层面推动南方采暖的首个城市加码。

作为一家拥有百年发展经验的跨国公司,欧博诺充分意识到环境与未来赋予其的使命。因此,欧博诺所提供的水暖、室内环境和基础设施解决方案,对降低初级能源需求和减少建筑物的二氧化碳排放量有着重要的意义。顺应可持续发展理念的时代要求,欧博诺以现代化科技手段,实现降低运行成本的目标。因此,欧博诺提供的以PE-RT管材搭配不锈钢分集水器打造的地面辐射供暖供冷系统,完全满足阿里巴巴的企业诉求。 阿里巴巴董事局之所以选择欧博诺,除品牌魅力外,还需要从欧博诺PE-RT管材与不锈钢分集水器说起:

欧博诺PE-RT 管材完全符合GB/T28799“冷热水用耐热聚乙烯(PE-RT)管道系统”标准。产品应用等级为4级,可用于地面辐射供暖和低温散热器链接。欧博诺PE-RT管材最高工作温度:70°C,在此温度下16×2.0mm及20×2.0mm管材的最高设计工作压力高达为0.8Mpa 和0.6Mpa,完全可满足民用建筑和商业建筑对供暖管道的要求。设计使用寿命为50年,在地面辐射供暖系统中是一种十分经济的选择。

欧博诺不锈钢分集水器耐腐蚀性强、卫生性高,抗冲击性强。一次冲压成形,热膨胀系数与铜接近。排水、注水、排水一体阀门可旋转,便于连接排水软管。
更重要的是, 欧博诺不锈钢分集水器给水管各回路带有平衡阀,可用内六角扳手对阀进行开度预设定。回水管带有开关阀并配有旋纽,拆下旋纽可将欧博诺执行器直接安装在开关阀上。配有噪音吸收固定支架,不带主管球阀和各回路螺口活接头。使用时,施工商只需选择好回路数的欧博诺分集水器可直接安装在指定区域,有独立支架和分集水箱可供选择。

欧博诺积极与现场施工方配合,从产品质量,到设计施工方案,再到后续的使用效果,均得到了阿里巴巴的充分肯定。配合整个空间简洁大气的设计风格,打造出舒适怡人的办公环境。

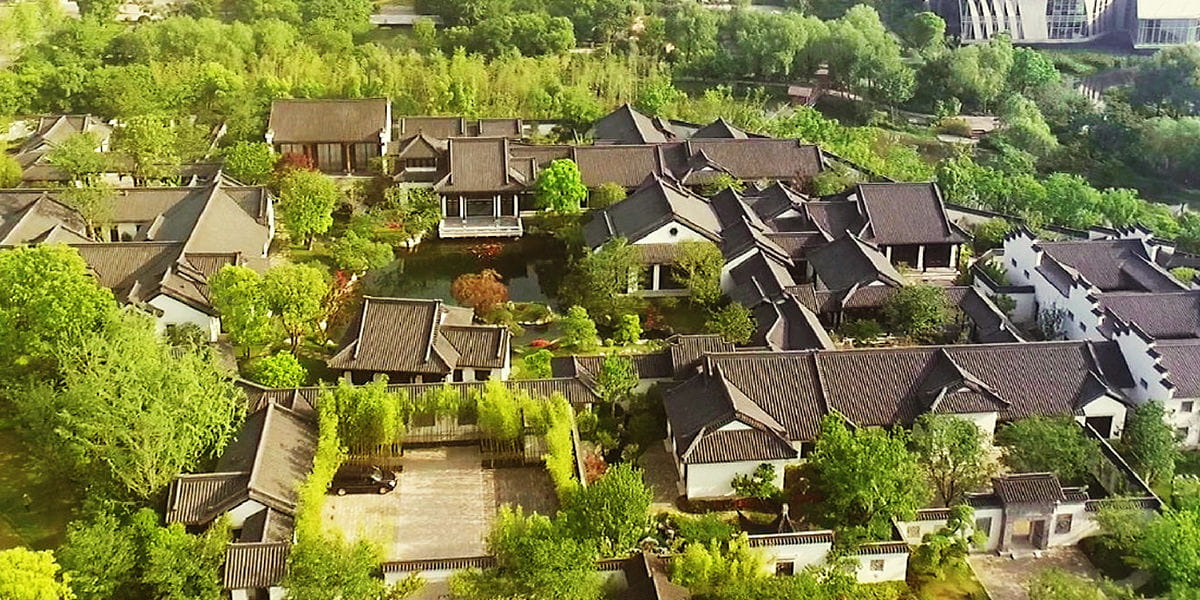

阿里巴巴董事局办公楼

alipay_10

Project Information

Project Information

Country
China
Completion
2016
Project Type
New building
Building Type
办公楼
Product lines
