Case study
青岛 拜耳ECB零能耗办公楼, 青岛, China
青岛 拜耳ECB零能耗办公楼
Uponor与拜耳ECB的合作关系
ECB 零能耗办公楼，作为拜耳（青岛）材料科技有限公司的行政大楼，是首座于中国兴建的生态商务建筑。拜耳生态商务建筑计划是一个全球倡议，通过拜耳及其建筑合作伙伴网络合作提供一体化的解决方案，以满足中国和全球有关节能和高成本效益的商业和公共建筑需求。
Project Facts
青岛, China
办公楼
辐射供暖供冷
Completion: 2011
Uponor Involvement
1,000 ㎡
拜耳行政大楼位于青岛经济技术开发区，是青岛市第一座零排放建筑。这个占地1000平方米的大楼，整个建筑系统通过可再生能源发电来满足能源需求并以长期的能效提高节省能源。
ECB 零能耗办公楼建筑系统的基本功能，如供暖供冷、照明、热水和通风，都配备了最先进的技术以优化能源使用，循环利用建筑的自然资源和利用太阳能能源减少碳排放。
ECB 零能耗办公楼项目的目标是为建筑用户提供高品质的室内气候，降低对环境影响并同时降低运营成本。可持续辐射供暖供冷系统是一个成功的解决方案，以获得和建立高舒适度的办公室。它们的供冷和供暖能力能够吸收或覆盖建筑物内的所有显热/显冷负荷，并提供高度个性化的舒适度。因此可以减少空调系统的使用，以最小的卫生空气交换率提供新鲜空气。该空调系统还对室内空间进行除湿以覆盖潜热负荷。
欧博诺辐射供暖供冷系统
欧博诺结构供暖供冷系统（TABS）Contec和OPTI Y被应用于拜耳ECB 零能耗办公楼项目中。我们的项目团队参与从该项目建筑设计、安装、监督到调试整个过程。该项目于2012年9月完成，一直运行至今。

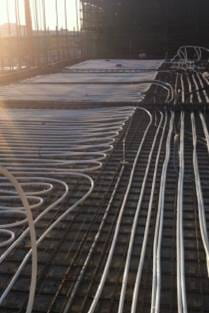

欧博诺结构供暖供冷系统通过将冷热水管道埋设在建筑物的混凝土结构中利用混凝土作为蓄热介质来完成供暖供冷。埋设在混凝土芯部的管材将热量存储在混凝土介质中来完成对热负荷的吸收或释放，这样天花板、楼板或墙体可承担大部分显冷/显热负荷以及建筑物的基本冷热负荷，节省运行成本。欧博诺结构供暖供冷系统- Contec被安装在建筑物中，实际安装面积达到583平方米。通过预置在建筑物混凝土结构中的冷热水管道进行供暖供冷，以减少空调的能耗。系统负担该办公区域的供暖与供冷负荷覆盖，嵌入式的冷热水管道将热量存储在建筑物中的混凝土芯以用于热负荷的吸收或释放，它可使用夜间电能将热能存储在混凝土楼板中间，用于第二天补偿冷热负荷，节省运行成本。除了结构供暖供冷系统，该建筑还安装了173平方米的OPTI Y悬挂型辐射供暖供冷吊顶板系统，以加强辐射供暖供冷性能。辐射供暖供冷天花板覆盖了办公区域的明显的冷热负荷。该系统反应快速，能够适应办公区域的负荷波动。该吊顶板可根据用户需要同时在不同区域进行供暖供冷，以提供个性化的用户舒适度。
由于所应用的系统供水温度接近环境温度，该系统可与可再生能源及免费冷源完美的结合在一起，这将大大降低运行成本。
拜耳青岛ECB 零能耗办公楼于2013年获得LEED金奖认证，并荣获GFHS全球绿色建筑最佳实践奖。
青岛 拜耳ECB零能耗办公楼
Project Information
Project Information
Address
青岛
Country
China
Completion
2011
Project Type
New building
Building Type
办公楼
Product lines
Contec
Partners
Partners
业主: 拜耳（青岛）材料科技有限公司
设计单位: 拜耳技术工程（上海）有限公司
