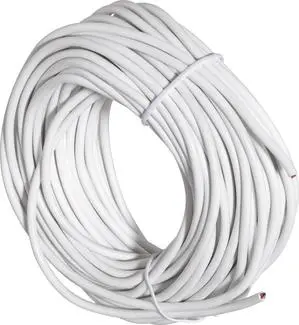

Uponor Smatrix Base bus cable A-145
- 4-wire bus cable allows to connect Uponor Smatrix Base / Base PRO devices - 2 wires for power supply / 2 wires for data transmission - Shielding: aluminium/polyester foil with tracer strand - Temperature range: -20°C - +80°C - Cross section: AWG22 - Sheath: PVC - Rated voltage: 400VAC/DC
Item details
Documents
Technical manuals
Approval Certificate
EU declaration of conformity
UPONOR CER CONTROLS AND OTHERS PARTS UKCA UK (1137326)
About
Specification
- Up to 4 controllers in one system - Operating voltage: 230V - Autobalancing optimises energy user and comfort - Electric control - Supports up to 6 room thermostats and 8 24V actuators per controller - Pump and boiler relays - Valve and pump exercise - Relative humidity control - Different wiring options (daisy-chain / star) - 4-wire Bus installation - Communication protocol: RS485 serial bus - max. power input per actuator: 24VAC / 0.2A (0.4A peak)Smatrix Base Pulse: - Local access (Wi-Fi) or remote access (internet connection required) via Uponor Smatrix Pulse App (with R-208) - Temporary wi-fi access point for direct access (if local wi-fi is not available) (with R-208) - Smart home ecosystem integration (Amazon Alexa, Google Home) (with R-208) - Multi-home control (with R-208) - Third-party access for remote support (user allowance required) (with R-208) - History trend analysis via Uponor Smatrix Pulse app (with R-208) - Timer programming (with R-208) - Comfort settings (with R-208) - Supply diagnostics (with R-208)
Application
- Wired room temperature control for radiant heating and cooling - set point range: +5°C - +35°C
Certification
- CE / EAC
