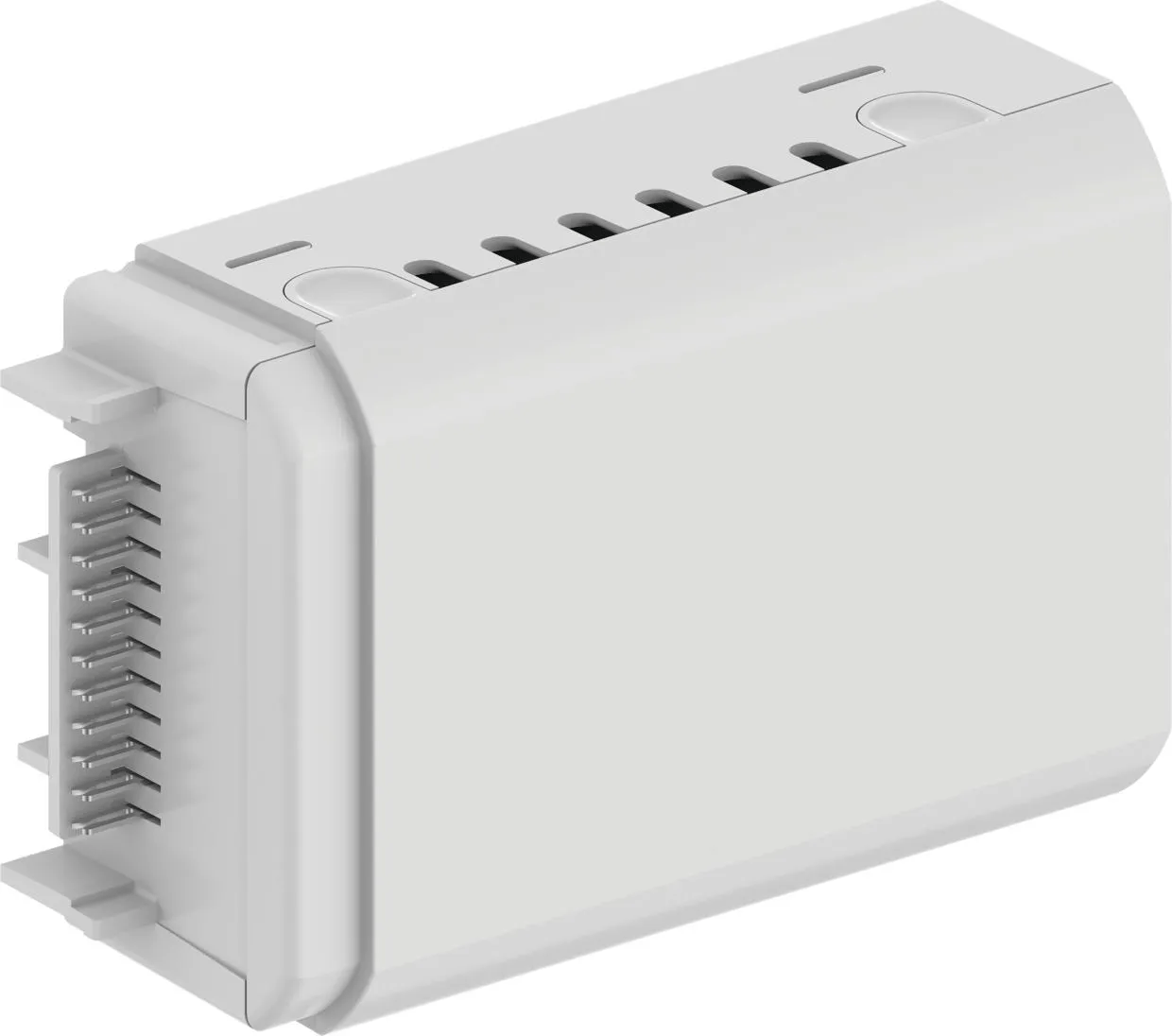

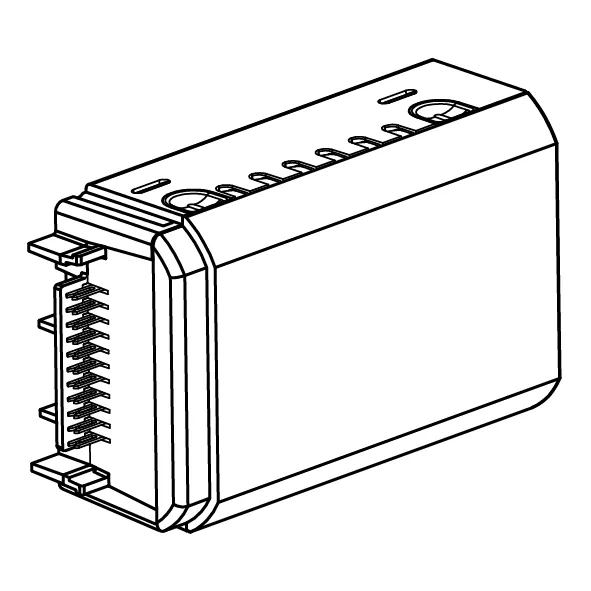

GF Uponor Smatrix Wave expansion module Flow M-362 6X

- Up to 4 controllers in one system
- Operating voltage: 230V
- Autobalancing optimises energy use and comfort
- Electric control
- Supports up to 6 room thermostats and 8 actuators
(24V) per controller
- Pump and boiler relays
- Valve and pump exercise
- Relative humidity control
- Combines underfloor heating/cooling and ceiling
cooling control
- Max. power input per actuator: 24VAC / 0.2A (0.4A peak)

Smatrix Wave Pulse:
- Local access (Wi-Fi) or remote access (internet connection
required) via Uponor Smatrix Pulse App (with R-208)
- Temporary wi-fi access point for direct access
(if local wi-fi is not available) - (with R-208)
- Smart home ecosystem integration
(Amazon Alexa, Google Home) - (with R-208)
- Multi-home control (with R-208)
- Third-party access for remote support
(user allowance required) - (with R-208)
- History trend analysis via Uponor Smatrix Pulse app
(with R-208)
- Timer programming (with R-208)
- Comfort settings (with R-208)
- Supply diagnostics (with R-208)

- Wireless room temperature control for radiant heating and
cooling
- Set point range: +5°C - +35°C

- CE, UKCA
