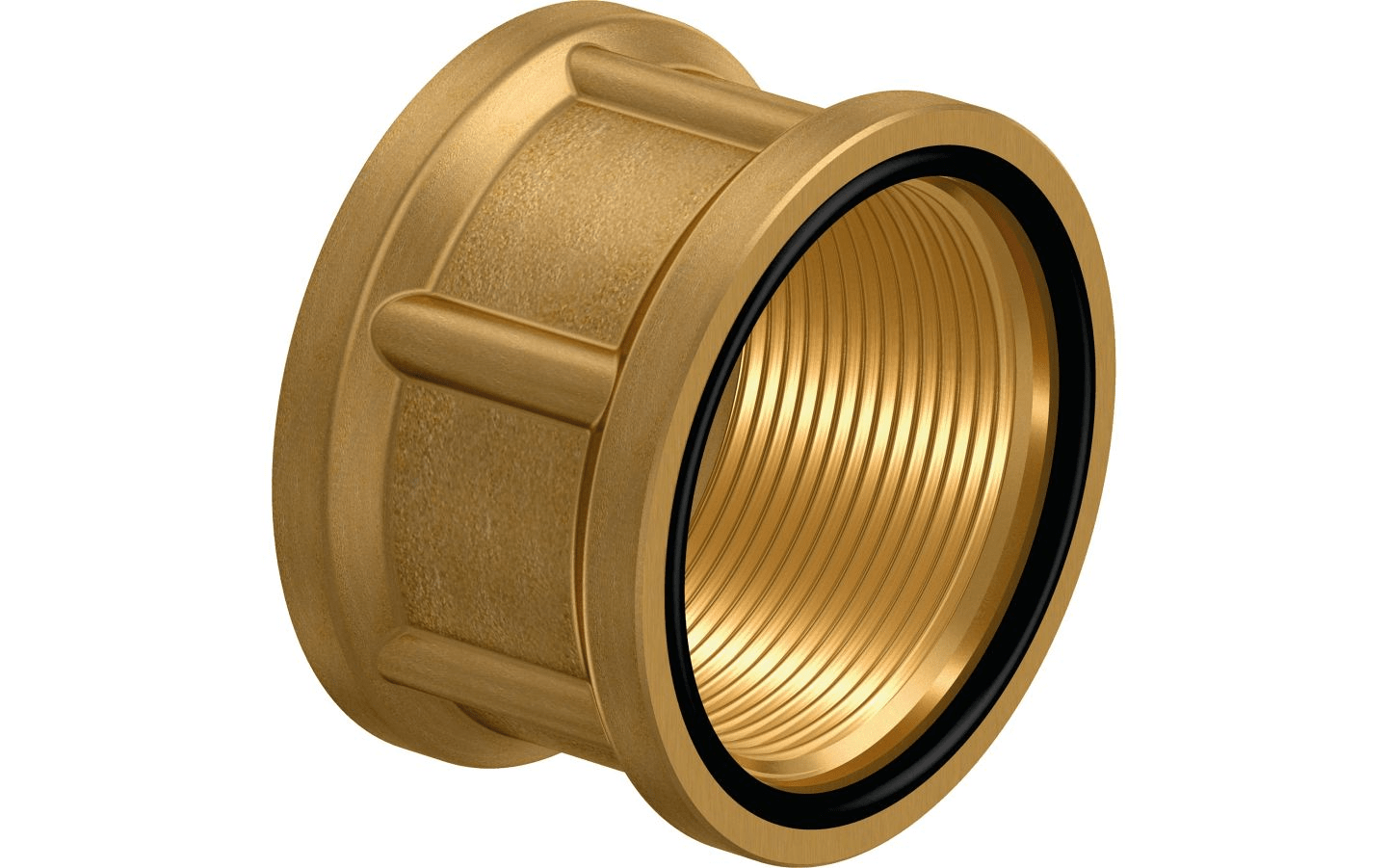

Uponor Wipex sleeve
- Parallel thread G" with sealing O-ring - 6 bar, SDR 11 / 10 bar, SDR 7,4 - DZR - dezincification resistant brass
Item details
Documents
Technical manuals
Approval Certificate
Installation Report Ecoflex pressure test water pipes (1120219)
Installation Report Ecoflex pressure test heating (1120218)
UPONOR CER WIPEX FIT MECH WRAS 2112320 UK EN (1135541)
UPONOR CER Ecoflex SYS MECH KIWA WATERTEC 2504718 GB EN (1119454)
UPONOR CER Ecoflex FIT MECH WRAS 25054005 GB EN (1119413)
About
Specification
- Wipex fittings in corrosion-resistant brass, dezincification based on EN ISO 6509 with stainless steel screw. - Sizes 25-110mm, O-ring sealing between Wipex coupling and base fitting - Sizes 125-160mm, threads must be sealed using a suitable sealing medium - Bolt set for couplers in stainless steel with brass washer - Pre-open sleeve design with assembled support part for the dimension 63-110mm.
Application
- Fittings for pipe systems Thermo, Aqua, Quattro, Supra, Supra PLUS and Thermo HP - Connection of PE and PE-Xa carrier pipes to couplers with cylindrical inch male thread - Max. operating temperature 95°C
Certification
UK Reg4 approval - WRAS or - KIWA to meet the requirements of the Water Supply (Water Fittings) Regulations 1999
