Uponor Siccus Mini Panel
- EPS panel 1.200x600x15mm - With full-face heat transfer layer of Aluminium - With integrated pipe grooves c-c 100mm - For use with Uponor Comfort Pipe Minitec 9,9
Item details
Documents
Technical manuals
Product Information Siccus Mini levelling material (1142400)
Technical Information underfloor heating and cooling planning information (1186660)
About
Specification
- Siccus Mini is a low-profile, dry installation UFH system - Full-surface integrated, aluminium heat conducting layer according to BS EN 1264; design B.- Panels made from XPS 400 with pipe spacing 100mm- For installation with Uponor Comfort PE-X Pipe 9.9mm
Application
- radiant underfloor heating and cooling for dry-build installations- Direct floor application
Certification
Certification Siccus mini- DINCERTCO 7F531-F (floating laminate)- DINCERTCO 7F532-F (direct flooring with wood parquet)- DINCERTCO 7F533-F (direct flooring with ceramic tiles, natural stone)- DINCERTCO 7F534-F (gypsum fiber layer for vinyl and carpet)Certification Siccus mini XPS- DINCERTCO 7F514-F (ceramic tiles, natural stone)- DINCERTCO 7F515-F (floating laminate, wood parquet)- DINCERTCO 7F516-F (gypsum fiber layer for vinyl and carpet)
Product drawings

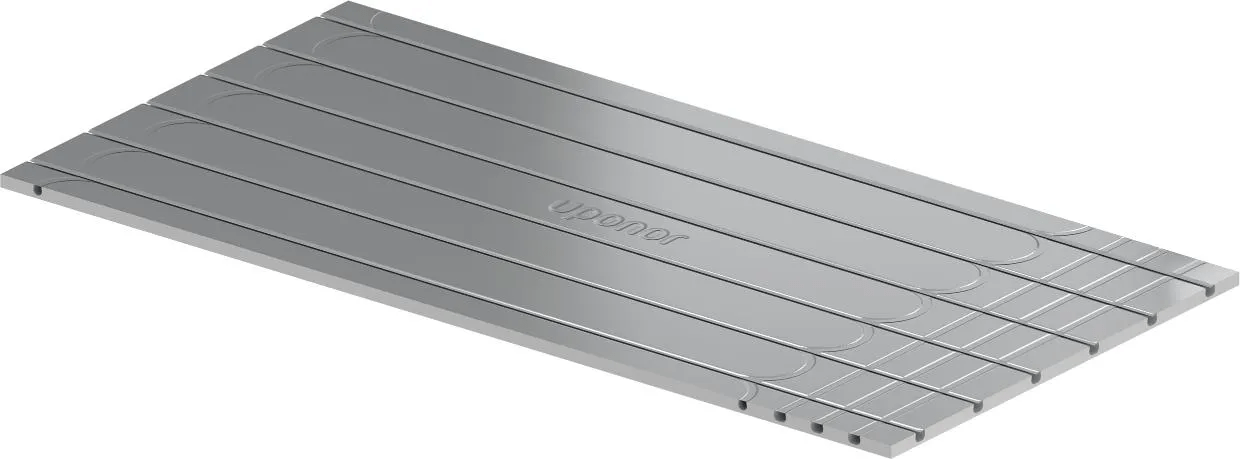

Rendered

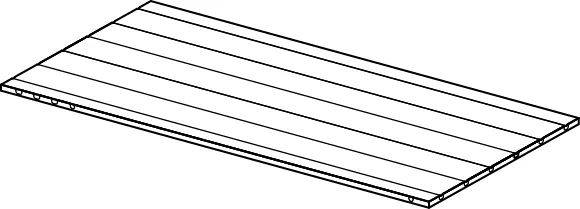

Label drawings
Z-drawing
