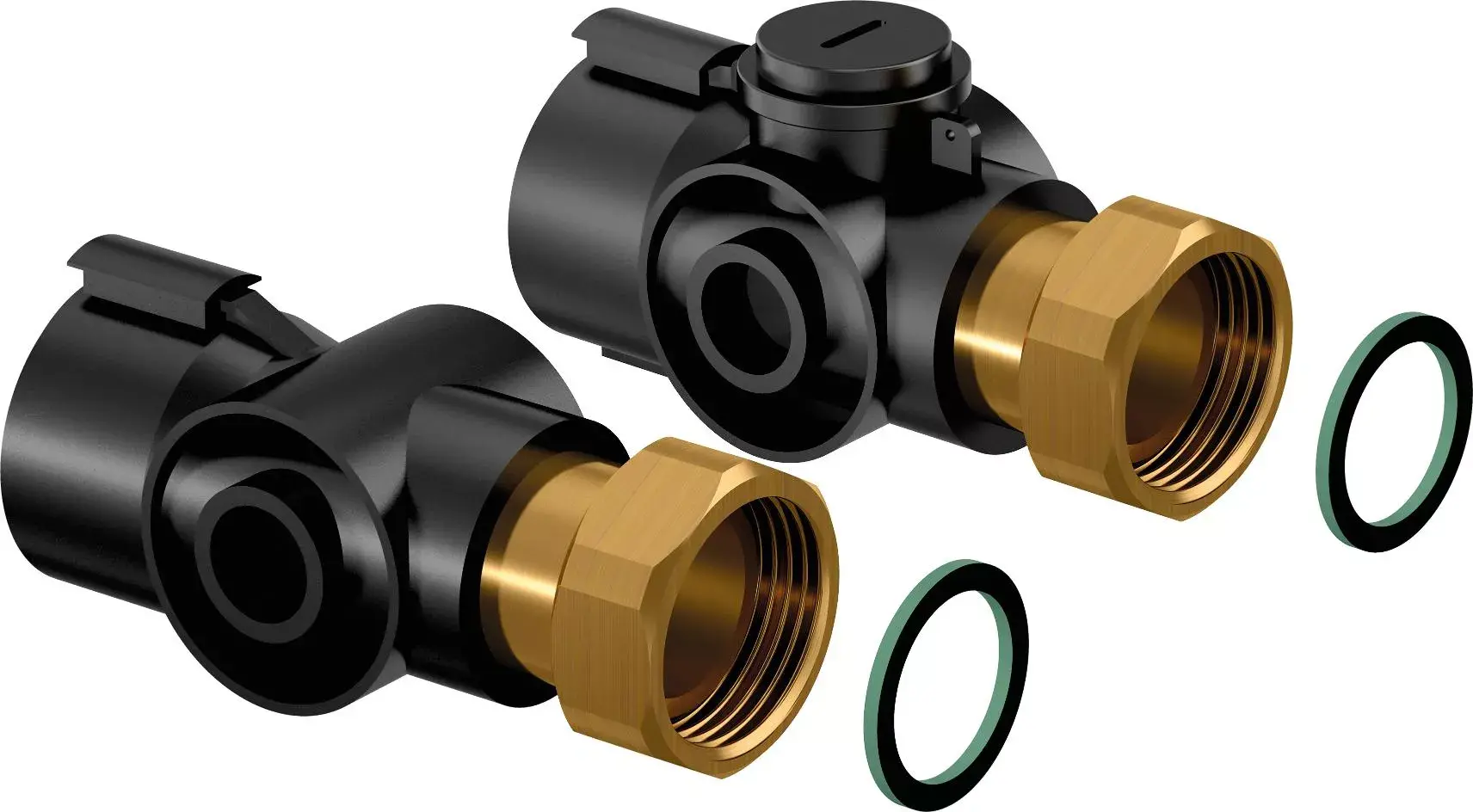

Uponor Vario PLUS connection set

- For Uponor Vario Plus manifolds with special-thread for tool-free connection from either left or right
- Consists of 2 segments
- One segment with 1/2" thread (plugged) prepared for heatmeter immersion sensor in combination with
- 1062462 Uponor HM Nipple for temperature sensor G1/2"xM10x1

Item details

1005227 / - / -

Uponor Vario PLUS connection set

About

Specification

- Modular fiberglass-reinforced polyamide manifold with
1,3,4,6 loops for connection with basic kit
- Connection right or left with flat sealing, or connection
from below with optional elbow set
- Supplied with lockshield (LS) valve for balancing, or
supplied with Flowmeter (FM) for balancing
- Shut-off and flow view
- Adjusting ring for balancing without tools
- Prepared are to apply room name labels
- Return with valves and caps, prepared for actuators
- Loop connection G3/4" Eurocone
- Loop pitch 50 mm
- Header pitch 225 mm

Actuator: NC (normally closed) closes without power
