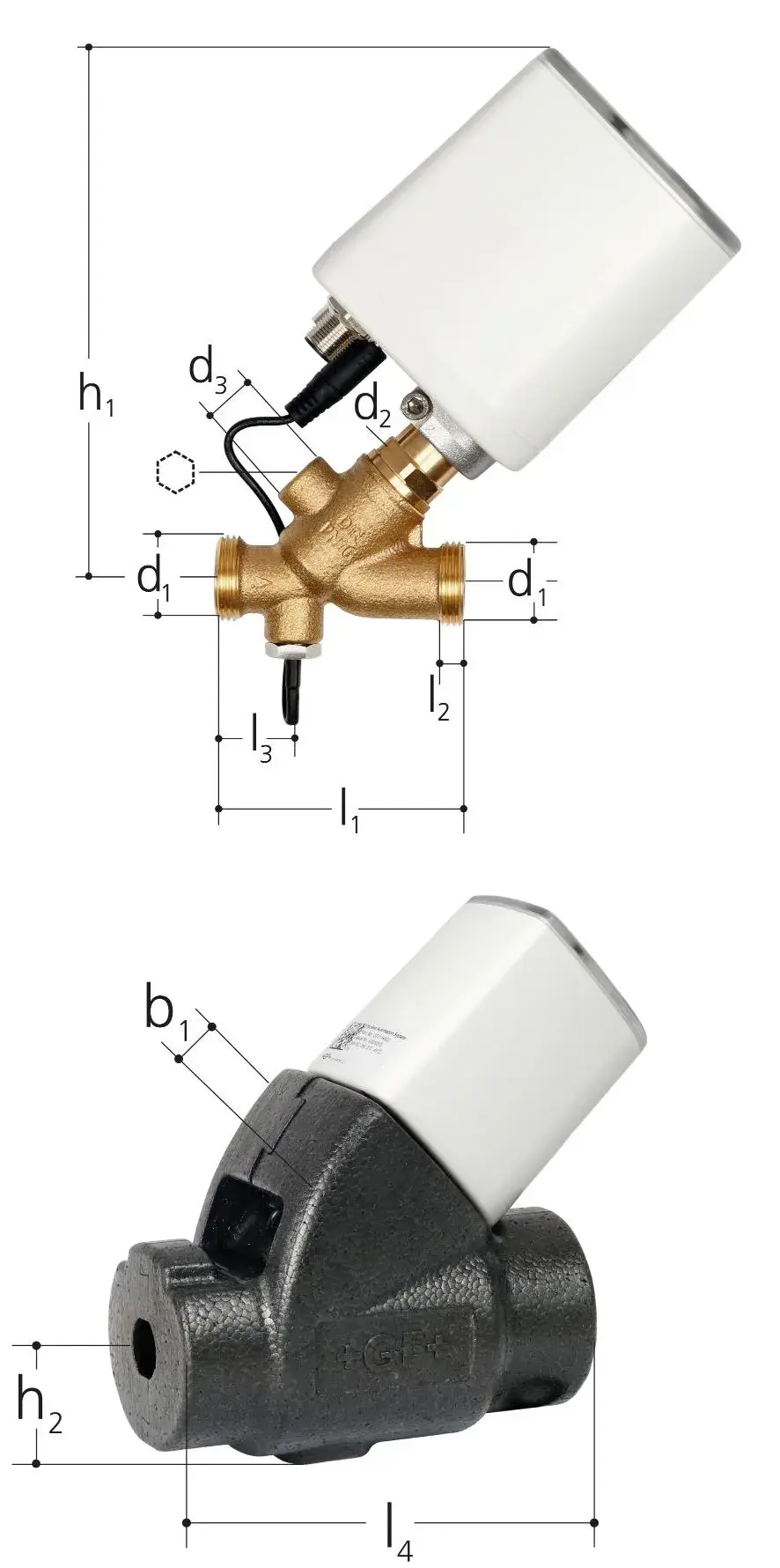

GF Hycleen AS flush valve LegioTherm K

- Temperature: max. 90°C
- Nominal pressure: PN10
- Material: gunmetal lead-free, stainless steel, EPDM
- Factory setting: 20°C (adjustable 0 - 90°C)
- Connection: screw connection
- Note: Flushing valve JRG LegioTherm K must not be used without the consent of the holder of patents EP 1 845 207 B1 and DE 10 2006 017 807 B4 for use in a water system of the type described in these patents.

Item details

1149719 / - / -

GF Hycleen AS flush valve LegioTherm K DN15

1149720 / - / -

GF Hycleen AS flush valve LegioTherm K DN20

Documents

Technical manuals
Approval Certificate

Installation and Operation Manual

8 KB1161518

IOM Hycleen automation system 3.5 EN 1161518 v1

Installation Manual

1 KB1161453

GF IM Hycleen Automation System, controller replacement (1161453)

4 KB1161594

GF QG Hycleen automation system (1161594)

Approval Certificate

159 B0000116717

GF JRG CER Hycleen FIT MECH DNV TAP000028E Master EN (0000116717)

Approval Certificate

99 B1162937

GF JRG CERT Hycleen FIT MECH WRAS 2101064 UK EN (1162937)

About

Specification

- Balancing valves: DN 15, 20, 25
- Flush valves: DN 15 & 20
- Central control interface with touch-screen
- Operating pressure: to 10 bar
- Operating temperature: +5°C to +90°C
- Materials: Gunmetal, Stainless steel, Plastics

Application

- Balancing of potable water hot circulation systems
- Ensure water exchange in potable water hot &
cold pipe sections
- For buildings with complex water installations
- Ideal for retro-fit where existing installations
experience poor hot water supply to outlets
