GF Hycleen AS Master
- Description: Master for max. 50 Hycleen AS Controller- Consisting of: touchscreen 10.1", power supply- 2 plugs M12 for 2x 300m cable (500m with powerbox)- 2 Rj45 jacks (Ethernet), 2 USB connections (read/write)- USB jack (read only), relay output- Screw set
Item details
Documents
Technical manuals
Approval Certificate
GF JRG CER Hycleen FIT MECH DNV TAP000028E Master EN (0000116717)
GF JRG CERT Hycleen FIT MECH WRAS 2101064 UK EN (1162937)
About
Specification
- Balancing valves: DN 15, 20, 25 - Flush valves: DN 15 & 20 - Central control interface with touch-screen - Operating pressure: to 10 bar - Operating temperature: +5°C to +90°C - Materials: Gunmetal, Stainless steel, Plastics
Application
- Balancing of potable water hot circulation systems - Ensure water exchange in potable water hot & cold pipe sections - For buildings with complex water installations - Ideal for retro-fit where existing installations experience poor hot water supply to outlets

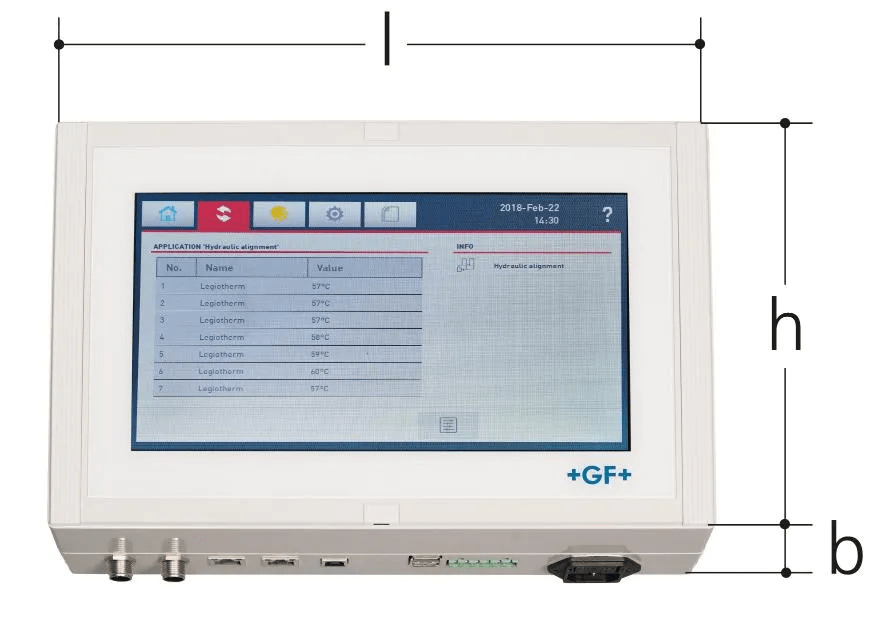

Product drawings

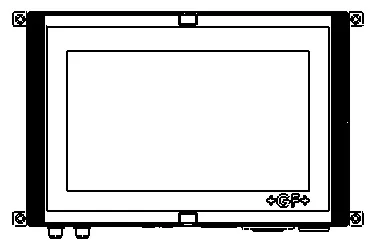

Label drawings
Other
