Uponor S-Press PLUS adapter
- Adapter with plated copper spigot - The connection of the plated copper pipe can be made using standard BS EN 1254 compression type fitting, or a compatible metal press connection.
Item details
Documents
Technical manuals
Approval Certificate
Environmental Product Declaration (EPD)
Installation Report MLC leak test report TW water (1120119)
Installation Report MLC flushing protocol TW water (1120120)
Uponor CER S-Press PLUS FIT MECH KIWA_Regulation_4_2505703 GB_EN (0000115559)
Uponor CER S-Press PLUS SYS MECH WRAS 1903901 GB (1095152)
UPONOR CER MLC SYS MECH Lloyds Register 17-20013-2 GB EN (1089107)
Uponor EPD S-Press PLUS (1162875)
About
Specification
- Unique press indicator foil - Fast 3-step installation (press without bevel) - Innovative QR code for immediate digital access - Colour coded - Fixed press sleeve with inspection windows - Precise jaw location - Fast diameter recognition - Accurate test safety function - 100% backward compatible with existing Uponor components - Flow rate optimized fitting body
Application
Tested/approved according to BS EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings for application class 1,2,4,5/10barDomestic water services: The permanent operating temperature from 20°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time. Domestic cold water services : where the water temperature does not exceed 20°C at a maximum permanent operating pressure of 16bar.Heating: The permanent operating temperature ranges up to 80°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.
Certification
UK Reg4 approval - WRAS or - KIWA to meet the requirements of the Water Supply (Water Fittings) Regulations 1999
Product drawings

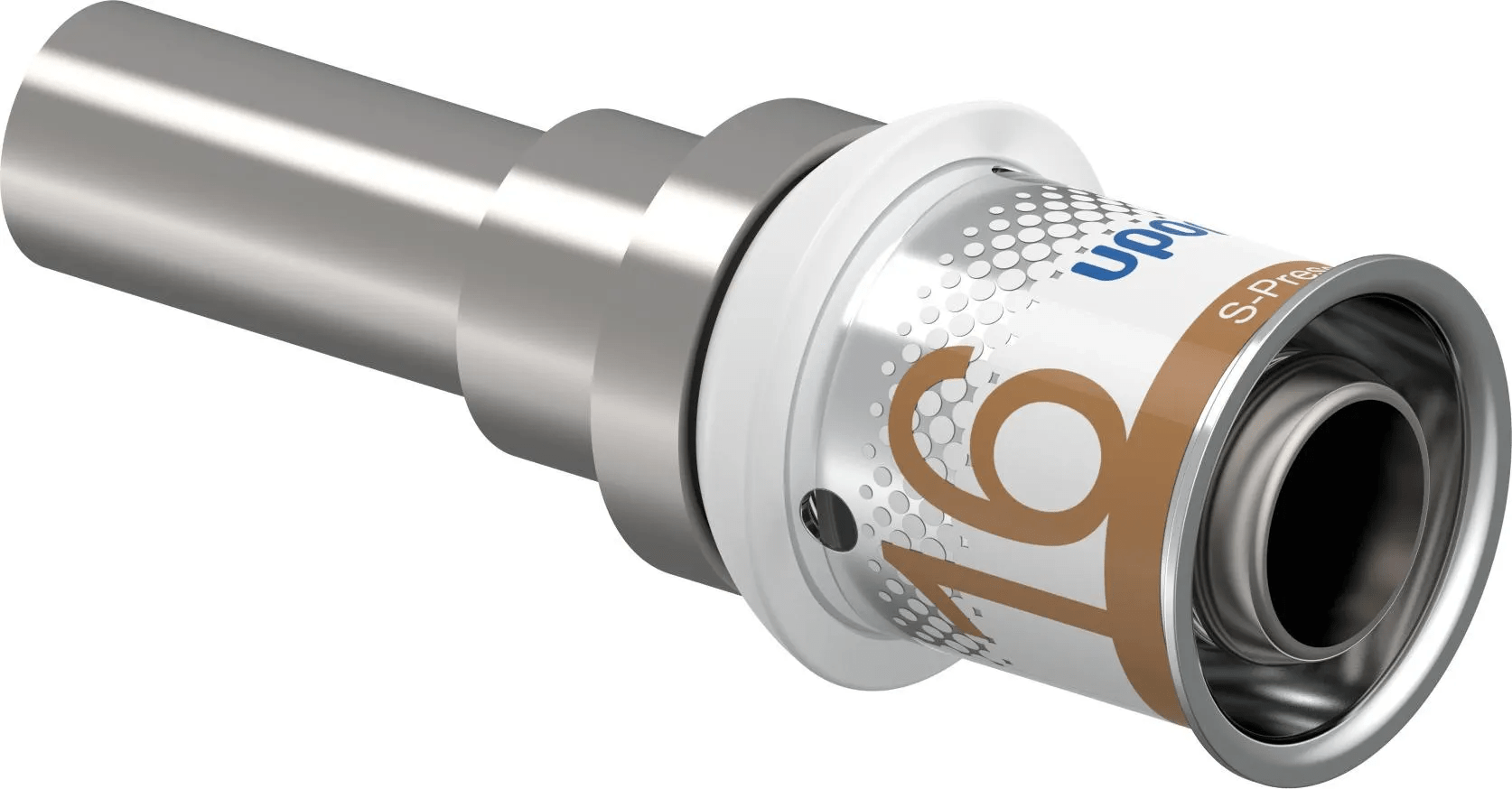

Rendered

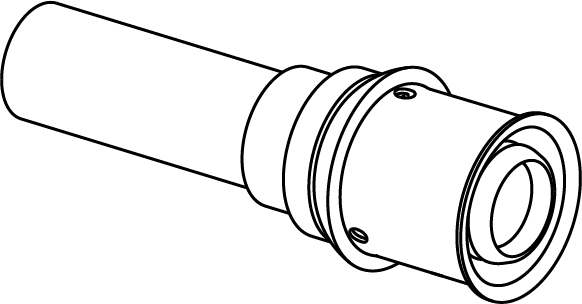

Label drawings

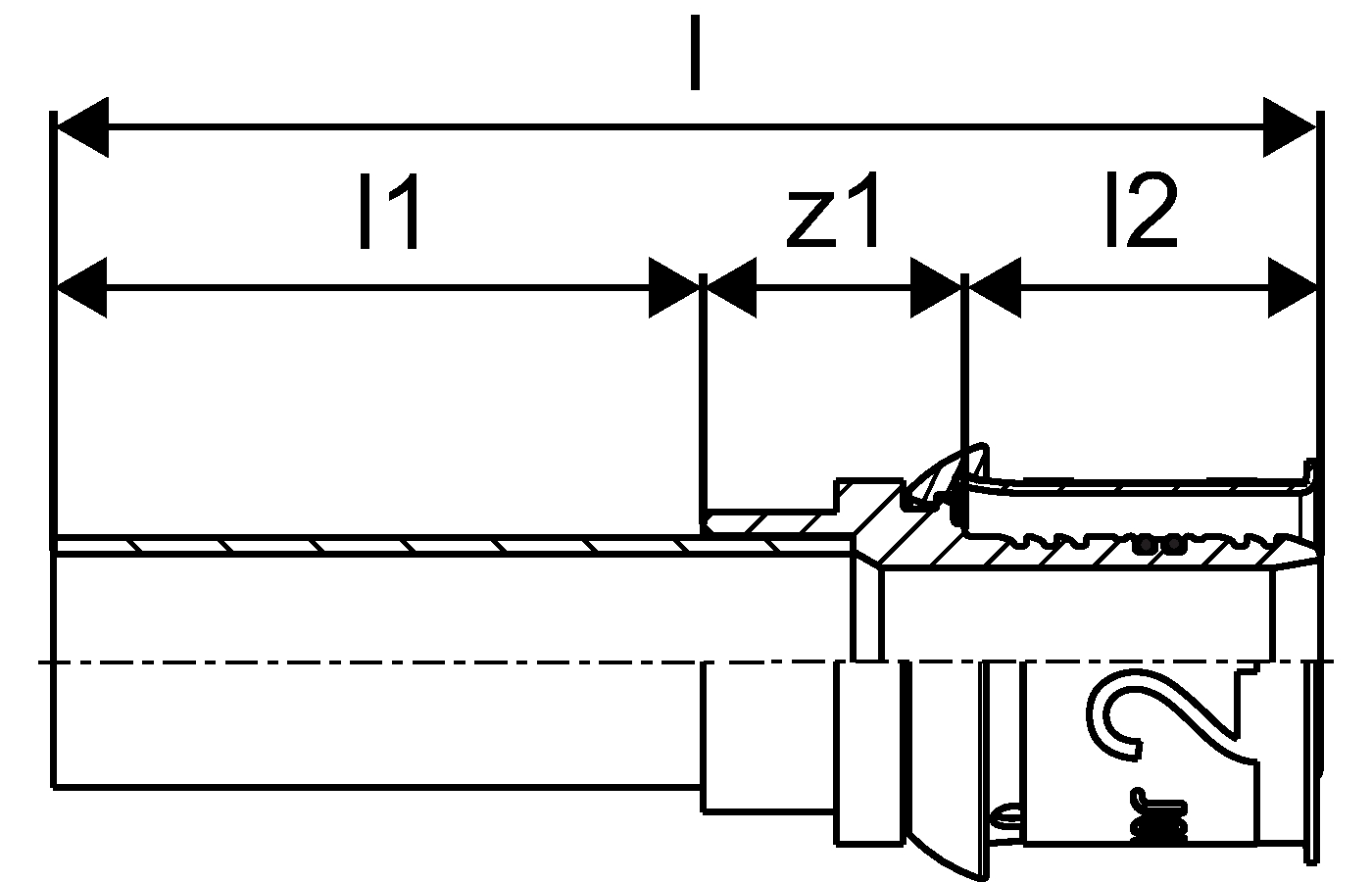

Z-drawing
